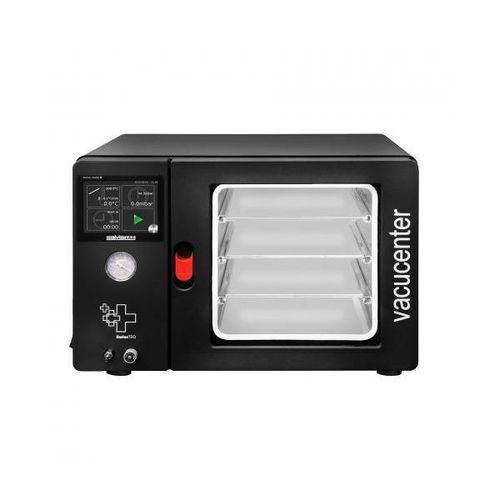

Vacuum incubator drying oven Vacucenter

for the pharmaceutical industrylaboratoryfor general purposes

Product Overview
The SalvisLab Vacucenter is the optimal solution for oxidation-sensitive substances and thermally instable products. It delivers precise thermal conditions in a dust-free vacuum atmosphere, making it suitable for laboratory applications in chemical engineering, pharmaceuticals, food, cosmetics and electronics. The Vacucenter is designed for compact footprint, reliable operation and long service life, integrating SwissTEQ engineering.

Special Versions
Vacucenter is available in several mounting configurations to improve workplace safety and save space. Mounting options include integration into fume hoods, biological safety cabinets or glove boxes, enabling adaptation to different laboratory environments.

Key Features

• Dynamic regulation and improved energy efficiency via SalvisTEQ controller
• Precise needle valve for controlled pressurizing
• Real-time clock with programmable process times
• Uniform temperature distribution through mantle heating
• Safety class 3.3
• USB and RJ45 interfaces
• Touch screen display
• Standard DN25 entry port
• Ambient temperature probe included

Variants
VC20

• External dimensions (wxhxd) mm: 545x375x425
• Internal dimensions (wxhxd) mm: 250x250x320
• Internal volume: 20 L
• Shelves (standard/max): 1/3
• Temperature range approx. >5°C above ambient to: 200°C
• Temperature variation at 50/150°C (±°C): 1.0/2.4
• Temperature fluctuation at 100°C (±°C): 0.2
• Power: 900 W
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

VC50

• External dimensions (wxhxd) mm: 645x475x525
• Internal dimensions (wxhxd) mm: 350x350x420
• Internal volume: 50 L
• Shelves (standard/max): 1/5
• Temperature range approx. >5°C above ambient to: 200°C
• Temperature variation at 50/150°C (±°C): 1.0/2.6
• Temperature fluctuation at 100°C (±°C): 0.2
• Power: 1350 W
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

Options (VC20 & VC50)

• Digital vacuum display
• Digital vacuum display and vacuum control
• Digital vacuum display and high vacuum control (0.1–20 mbar)
• Digital vacuum display, vacuum control and ventilation control
• Product temperature controller
• Program and user package
• Process graph
• Redundant PT-100 probe
• Factory temperature mapping
• Additional memory
• IQ/OQ draft paper, 3 hard copies
• Chemically resistant solenoid vacuum valve
• Freely assignable analog outputs
• Programmable power socket
• Multi-point calibration (up to 10 points)
• Potential-free contact

Accessories (VC20 & VC50)

• Stainless steel shelves
• Aluminum shelves
• Double connector for air and inert gas
• Light barrier
• Product temperature probe PT-100
• Vacuum pump connector DN16

Downloads
Datasheets and product brochures are available for the Vacucenter family.

Technical specifications

• Compact formfactor, reliability and durability (SwissTEQ)
• Dynamic regulation and improved energy efficiency via SalvisTEQ controller
• Precise needle valve for controlled pressurizing
• Real-time clock with programmable process times
• Uniform mantle heating for temperature homogeneity
• Safety class: 3.3
• Interfaces: USB and RJ45
• User interface: Touch screen display
• Standard DN25 entry port
• Ambient temperature probe included
• Variant VC20 — Internal volume 20 L; internal dims 250x250x320 mm; external dims 545x375x425 mm; shelves 1/3; temp range up to 200°C; temp variation 1.0/2.4°C at 50/150°C; temp fluctuation 0.2°C at 100°C; power 900 W
• Variant VC50 — Internal volume 50 L; internal dims 350x350x420 mm; external dims 645x475x525 mm; shelves 1/5; temp range up to 200°C; temp variation 1.0/2.6°C at 50/150°C; temp fluctuation 0.2°C at 100°C; power 1350 W
• Available options include multiple vacuum display and control levels, ventilation control, product temperature controller, program and user packages, process graphing, redundant probes, factory mapping, additional memory and calibration services
• Available accessories include stainless or aluminum shelves, double gas connectors, light barrier, PT-100 probes and vacuum pump connector DN16
