Coupled to a Fourier transform Raman spectrometer microscope Virsa™

multifunctionallaboratoryfor environmental analysis

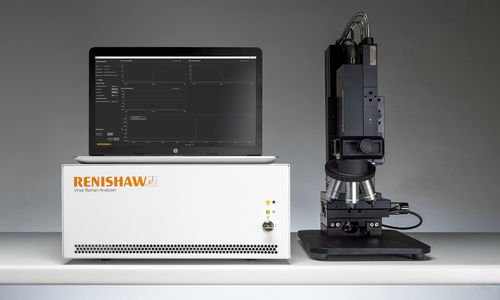

The world's only Raman system with remote probes capable of automatic focus-tracking. The Virsa fibre-optic-coupled Raman analyser enables you to take your spectroscopic analysis away from the confines of the laboratory microscope to new samples and environments. Using our LiveTrack™ focus-tracking technology and Monitor™ software, the Virsa system can easily perform real-time analysis on samples that have irregular surfaces, are changing shape as they undergo phase changes, and that move, such as those on production lines. High performance portable fibre coupled Raman system High spatial resolution x/y <1 µm, z <2 µm Live white light sample viewing for accurate sample targeting Motorised x/y/z stack that enables accurate objective positioning for single point or mapping purposes Work with objective lens pointing downwards or horizontally This versatile system has a modest footprint measuring just 543 mm x 436 mm x 178 mm. It can be used on a bench or mounted in an industry-standard 19" rack. This makes it ideal for researchers wanting to expand the application of Raman beyond traditional laboratory-based microscope systems. The Virsa system uses fibre-optic probes enabling you to analyse large, uneven, moving, or chemically-changing samples. The probes incorporate Renishaw's LiveTrack focus-tracking technology which automatically keeps samples in focus, ensuring you get high-quality Raman data. The Virsa system's software incorporates reaction monitoring allowing you to capture, analyse, and display data dynamically and in real time as it makes measurements at up to 8 times per second.
