Jaw crusher BB 250

mechanicalcontinuous

Overview
The Jaw Crusher BB 250 is designed to accept large feed sizes up to 120 x 90 mm. The gap width is infinitely adjustable from 0 to 30 mm, enabling final particle sizes down to < 2 mm depending on material and settings. Throughput can reach up to 300 kg/h. The BB 250 is built for simple handling, easy cleaning and continuous or batchwise operation. A front door provides direct access to the crushing chamber at ergonomic height. The removable feed hopper with splash-back protection, dust-extraction connection and mechanical overload protection facilitate safe, dust-minimized operation. A scale indicates jaw wear for maintenance planning.

Key Features

• Accepts large feed sizes up to 120 x 90 mm
• Stepless gap width setting 0 - 30 mm
• Final particle sizes down to < 2 mm (depending on material and settings)
• Throughput up to 300 kg/h (depending on material and configuration)
• Front door for easy access and cleaning of the crushing chamber
• Continuous gap width setting with scale for reproducible results
• Collecting receptacle with outlet for continuous operation
• Connection for dust extraction
• Scale to indicate jaw wear
• Selection of hoppers and collecting vessels for specific applications

Robust & Versatile - Additional Highlights

• Wide range of materials for contamination-free processing
• Protected against mechanical overload
• Modular housing/frame concept suitable for many applications
• Available in batchwise and continuous operation modes

Accessories & Options

• Breaking jaws and wearing plates in different materials: manganese steel; stainless steel; tungsten carbide; steel for heavy-metal free grinding; stainless steel 316L; NiHard4
• Three hopper types including optional large infeed hopper (up to 10 L) and special hoppers for drill cores or large bulk material with splash-back cover
• Collecting receptacle options: standard up to 10 L; funnel with outlet for continuous operation; large-volume receptacle (up to 26 L) on wheels for dust-free handling

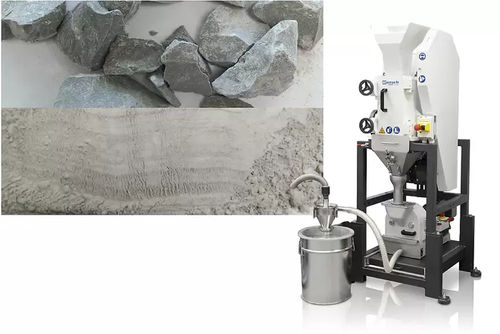

• Cyclone system for total sample recovery and reduced dust emission; can be retrofitted

Combi Unit (Two-stage sample preparation)
The BB 250 can be combined with the Disc Mill DM 200 via a cyclone separator to enable automated continuous sample preparation. Material is transported directly from the jaw crusher to the disc mill, allowing large feed sizes to be reduced in one continuous process to a defined final fineness. This two-step setup is ideal for hard or brittle materials requiring coarse reduction followed by fine grinding.

Application Example of the Combi Unit

• Gap setting jaw crusher: 2 mm
• Gap setting disc mill: 0.2 mm
• Feed size: 60 mm
• Final fineness: 200 μm
• Sample amount: 1 kg
• Process time: 10 min

Typical Sample Materials
Construction materials, ores, granite, oxide ceramics, quartz, slag, silicon, coal, tungsten alloys, cement clinker, catalysts, drill core and similar medium-hard to hard, brittle or tough materials.

Functional Principle
The BB 250 is a forced-feed jaw crusher. Material passes through a no-rebound hopper into the crushing chamber. Size reduction occurs between the fixed crushing jaw and the moving jaw driven by an eccentric shaft. The elliptical motion compresses and crushes the sample which moves towards the discharge gap under gravity; when smaller than the gap it falls into a removable collector. Continuous gap width setting with scale ensures reproducible size reduction.

Product Details (tabular information)
Applications: coarse and pre-crushing
Field of application: chemistry/plastics, construction materials, engineering/electronics, environment/recycling, geology/metallurgy, glass/ceramics
Feed material: medium-hard, hard, brittle, tough
Size reduction principle: pressure
Material feed size*: < 120 x 90 mm
Final fineness*: < 2 mm
Throughput*: 300 kg/h
Material of grinding tools: manganese steel; stainless steel; tungsten carbide; steel for heavy-metal free grinding; stainless steel 316L; NiHard4
Jaw width: 120 x 90 mm
Gap width setting: 0 - 30 mm
Gap width display: Scale
Zero point adjustment: 3,4 mm
Wearing rate display: 4,6 mm
Removable hopper: 6,9 mm
Dust extraction unit: yes
Central lubrication: no
Process line version: optional
Collector capacity: 10 L
Base frame: vario frame (adjustable for continuous crushing)
Drive: 3-phase motor
Drive power: 3.0 kW
Electrical supply data: different voltages
Power connection: 3-phase
Protection code: IP 55
W x H x D closed: 695 x 1399 x 719 mm
Net weight: ~ 350 kg
Standards: CE
*depending on feed material and instrument configuration/settings

Technical specifications

• Model: BB 250
• Jaw width: 120 x 90 mm
• Material feed size: < 120 x 90 mm
• Gap width setting: 0 - 30 mm (stepless)
• Final fineness (depending on material): < 2 mm
• Throughput (depending on material): up to 300 kg/h
• Drive power: 3.0 kW (3-phase motor)
• Collector capacity: 10 L (standard)
• Protection code: IP 55
• Net weight: approx. 350 kg
• Dust extraction: possible (connection provided)
• Material options for breaking jaws: manganese steel; stainless steel; tungsten carbide; steel for heavy-metal free grinding; stainless steel 316L; NiHard4
• Standards: CE
