Jaw crusher BB 200

discsamplecontinuous

Product Overview The BB 200 jaw crusher from RETSCH is a floor-mounted forced-feed crusher designed for preliminary and continuous crushing tasks. It accepts feed sizes up to 90 mm and delivers throughput up to 300 kg/h. The gap width is continuously adjustable from 0 to 30 mm, enabling particle sizes down to 2 mm depending on material and settings. The crusher processes small samples batchwise or larger quantities continuously and discharges material into a removable collector.

Robust & Versatile — Key Features

• High crushing performance for a wide range of materials
• Multiple grinding tool materials for contamination-free processing
• Wear compensation with zero-point adjustment
• Continuous gap-width setting with scale for reproducible results
• Easy-to-clean crushing chamber
• Suitable for continuous operation and process-line integration
• Connector for dust extraction

Accessories & Options Breaking jaws and wear plates are available in five materials to match sample type and analysis requirements:

• Manganese steel
• Stainless steel
• Tungsten carbide
• Steel 1.1750 (for heavy-metal-free grinding)

Heavy-metal-free & Special Versions RETSCH offers heavy-metal-free configurations. A special version for semiconductor materials includes plastic lining of the feed hopper and receptacle and uses tungsten carbide jaws and wear plates so the sample does not contact metal surfaces.

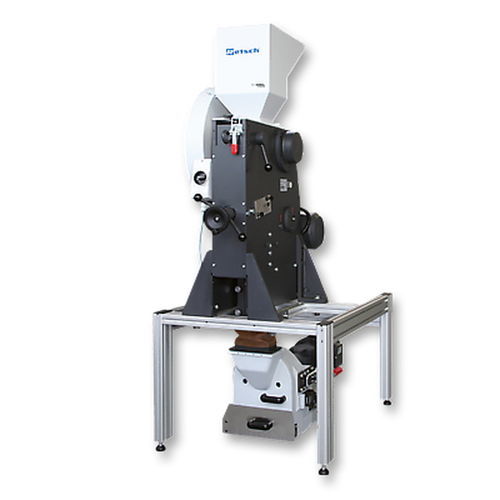

Continuous Pre- and Fine Grinding For rapid continuous comminution to analytical fineness, the BB 200 can be mounted above the RETSCH Disc Mill DM 200 and connected by a chute. This process grinds samples up to 90 mm feed size down to much finer sizes in a single pass.

Functional Principle Material is fed through a no-rebound hopper into the crushing chamber where size reduction occurs between a fixed and a moving crushing arm driven by an eccentric shaft. The elliptical motion and flywheel effect ensure smooth operation. A Belleville spring washer in the spindle adjustment provides overload protection. Sliding bearings are maintenance- and lubricant-free.

Typical Sample Materials Suitable for preliminary crushing of construction materials, ores, granite, oxide ceramics, quartz, slag, silicon, coal, tungsten alloys, cement clinker, and similar materials.

Technical data / specifications

• Applications: coarse and pre-crushing
• Field of application: chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics
• Feed material: medium-hard, hard, brittle, tough
• Size reduction principle: pressure
• Material feed size*: < 90 mm
• Final fineness*: < 2 mm
• Throughput*: 300 kg/h
• Material of grinding tools: manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding)
• Jaw width: 90 x 90 mm
• Gap width setting: 0 - 30 mm
• Gap width display: Scale
• Zero point adjustment: yes
• Hinged hopper: yes
• Dust extraction unit: yes
• Maintenance- and lubricant-free sliding bearing: yes
• Process line version: Optional
• Collector capacity: 5 l
• Drive: 1-phase motor / 3-phase motor
• Drive power: 1.5 kW
• Electrical supply data: different voltages
• Power connection: 1-phase / 3-phase
• Protection code: IP 54
• W x H x D closed: 450 x 1160 x 900 mm
• Net weight: ~ 300 kg
• Standards: CE

*depending on feed material and instrument configuration/settings
