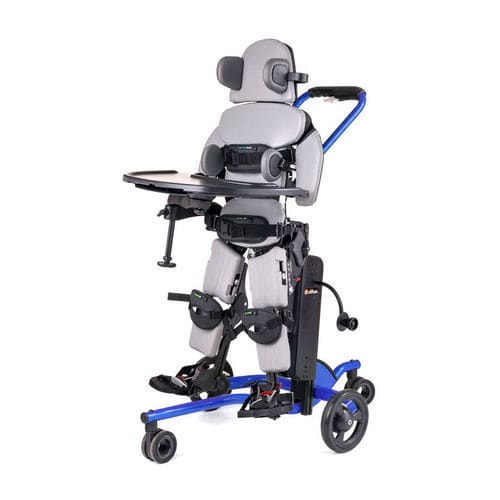

Pediatric standing frame S4 series

height-adjustable

Product overview
Standing transforms lives. For children and adults with disabilities, the opportunity to stand—whether upright, supine or prone—brings new opportunities for interaction, development, and dignity. The Rifton Multi-Position Stander is a versatile, supportive, and easy-to-adjust multi-position standing frame that meets a wide range of positioning needs.

Why standing matters: benefits

• Promotes bone health by maintaining or increasing bone mineral density.
• Reduces spasticity, stretches muscles, and improves range of motion.
• Encourages better spinal alignment and posture.
• Supports hip joint development with optional leg abduction for comfort and alignment.
• Facilitates eye-level engagement and social interaction with peers and family.

Designed for flexibility
The Multi-Position Stander is engineered for ease of use and clinical versatility. It adapts seamlessly for supine, prone, and upright positioning with features that let therapists and caregivers fine-tune posture and support as the user grows.

• Tool-free angle and height adjustments.
• Independent hip abduction.
• Tilt-in-space functionality.
• Knee and hip flexion adjustments.
• Head and trunk control components.
• Body support components that grow with the client.

Features of the New Rifton Stander

• Base frame with multiple configurations for prone, supine and upright use.
• Body support options (horizontal support) designed to be adjusted in height and angle.
• Caregiver handle for positioning and transport assistance.
• Height adjustment range to accommodate growth.
• Independent hip abduction up to specified degrees for alignment.
• Tilt adjustment to change standing angle and postural demand.
• Hip flexion and depth adjustments for individualized positioning.
• Knee flexion adjustment for seating/standing biomechanics.
• Adjustable sandals and sandal lift kits for small users.
• Room for growth across Size 1, Size 2 and Size 3 models.
• Supine-specific components (hip strap, head laterals, butterfly harness options).
• Prone-specific components (pelvic harness, knee cuffs, upper trunk supports).

Sizing & dimensions (summary)
Item / S410 Size 1 / S420 Size 2 / S430 Size 3
Overall height : 28 – 42 in / 38 – 53 in / 48 – 65 in
Base length : 32½ in / 39 in / 43 in
Base width : 21½ in / 27 in / 29 in
Height of horizontal body support from floor : 22 – 28 in / 22½ – 36½ in / 23½ – 38 in
Sandal to knee height : 6¾ – 11 in / 10 – 15¼ in / 12¼ – 19 in
Knee to hip height : 6¼ – 10½ in / 8½ – 13½ in / 12 – 17¼ in
Sandal to top of headrest : 31½ – 43 in / 41 – 55 in / 49 – 66½ in
Distance between trunk laterals : 5½ – 10 in / 7 – 11½ in / 9 – 14 in
Distance between medial/lateral thigh supports : 2½ – 4 in / 3¼ – 5 in / 4 – 5½ in
Item weight (Prone) : 47 lb / 72 lb / 104 lb
Item weight (Supine) : 52 lb / 78 lb / 115 lb
Maximum working load : 75 lb / 100 lb / 185 lb

Components & customization
The system offers many component options so clinicians can configure the stander for specific positioning goals: trunk straps, pelvic and pelvic/pelvic harnesses (prone and supine), head laterals, butterfly harness, knee cuffs/straps (prone and supine), split knee supports, trays and elbow blocks, trunk laterals, upper trunk supports and sandal lift kits. Components are available to match each size model.

Characteristics / technical specifications

• Models: Size 1 (S410), Size 2 (S420), Size 3 (S430).
• Multi-position: supports prone, supine and upright standing positions.
• Tool-free adjustments for angle and height (designed for caregiver/therapist ease of use).
• Tilt-in-space functionality for adjustable standing angle and postural demand.
• Independent hip abduction (clinically indicated for alignment and comfort).
• Adjustable hip and knee flexion and depth settings for individualized biomechanics.
• Adjustable sandals and optional sandal lift kit for very small users.
• Wide range of accessory components (trays, straps, harnesses, head supports, knee supports, medial/lateral thigh supports, elbow blocks, trunk laterals).
• Maximum working loads by size: S410 = 75 lb; S420 = 100 lb; S430 = 185 lb.
• Item weights (approx.): prone/supine configurations vary by size (see sizing summary above).
