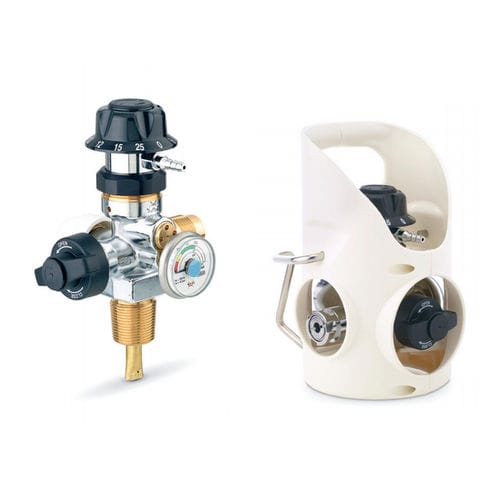

Medical gas pressure regulator M706

for emergency bagsfor hospitalshome care

The M706 integrated valve from Rotarex Meditec is an all-in-one valves for Medical oxygen therapy. It combines shut-off valve, Residual pressure device, pressure regulator, flow selector, hose barb, medical outlet and filling port in a unique device. The best solution for hospital therapy, home care and emergency transportations. Key advantages All required elements integrated in a single design No need for multiple peripherical devices Highest level of quality from Rotarex Meditec Easy to use & to carry Adaptable & connectable to hospital equipment Good integration design in the hospital environment Transportable with π marking Highest level of safety Specifications Inlet connection 17E / 25E / 3/4"- 16 UNF Filling Port - ISO 5145 / CGA V1 with check valve Flow Outlet Hose Barb Pressure Outlet Acc. to national standards Temperature range -20 to +65 °c Body Chrome plated brass Seats PA 6.6 O-ring EPDM Filters Sintered Bronze 20 μm
