Medical gas pressure regulator M741
for hospitalshome caremedical

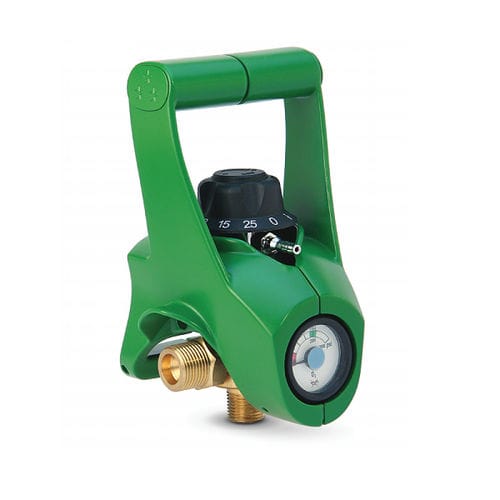

Medical gas pressure regulator - M741 - ROTAREX MEDITEC - for hospitals / home care / medical

Medical gas pressure regulator - M741 - ROTAREX MEDITEC - for hospitals / home care / medical - image - 2

Medical gas pressure regulator - M741 - ROTAREX MEDITEC - for hospitals / home care / medical - image - 3

Medical gas pressure regulator - M741 - ROTAREX MEDITEC - for hospitals / home care / medical - image - 4

Add to favorites

Compare this product

Characteristics

Fluid type

for medical gas

Applications

medical, for hospitals, home care

Connection type

integrated

Other characteristics

with flow selector

Flow

Max.: 25 l/min
(6.6 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Inlet pressure

134 bar
(1,943.5 psi)

Output pressure

3.5 bar
(50.8 psi)

Height

173 mm
(6.8 in)

Width

104 mm
(4.1 in)

Description

The M741 integrated valve from Rotarex Meditec is an all-in-one valve for medical oxygen therapy. It combines residual pressure device, pressure regulator, flow selector, hose barb, medical outlet and filling port in a unique device. Key advantages Compact Medical Integrated Valve for Oxygen and others medical gases For all hospital and homecare applications Available for all main standards Provided with a plastic integrated hanger to carry and protect the valve Active Pressure Regulators Cylinder Safety Device Filling Port Pressure Regulator Safety Relief Device Flow Selector Medical Outlet Connection (Optional) Specifications Inlet connection 3/4" - 16 UNF Filling port CGA 540 with check valve Flow outlet Hose Barb Pressure outlet DISS 1240 9/16"-18UNF Temperature range -20 to +65 °c Body Chrome plated brass Seats PA 6.6 O-ring EPDM Filters Sintered Bronze Options Inlet Device : Filter / Anti-dust tube / Excess Flow device
