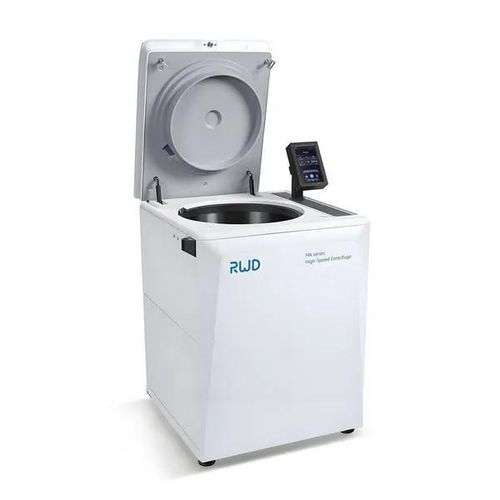

Laboratory centrifuge MX30R

clinicalfor the pharmaceutical industryfor production

Overview
Designed for a wide range of applications — from academic research to industrial production — the MX30R delivers a maximum RCF of 110,000×g, a top speed of 31,000 rpm and a single-run capacity of up to 6 liters (6×1000 mL). Compact benchtop design and advanced temperature control support demanding workflows across scales.

Key Features
The patented rotor self-locking system enables 3-second rotor exchange. Optional carbon fiber rotors provide lightweight strength and excellent corrosion resistance to extend service life. A 7-inch intelligent touchscreen with integrated multi-function software supports multi-level access control and USB data export for traceability and compliance. Three door-opening modes, low benchtop height and quiet operation enhance user ergonomics and lab integration.

Unmatched Safety

• Self-locking and automatic rotor recognition prevent hazards from incorrect installation or misuse.
• Triple-layer reinforced chamber reduces risk from operational incidents.
• Fixed-angle rotors incorporate leak-containment design to secure spilled samples and minimise cross-contamination.
• Standard HEPA filtration purifies exhaust air of aerosols.

Diverse Rotor Options

• Multiple rotor types: swing-out, fixed-angle and continuous-flow rotors to cover diverse applications.
• Carbon fiber rotors: lightweight, fatigue-resistant and durable — example: 6×1000 mL at 17,000×g (MX-F6-1000CF).
• High-strength titanium rotors: supporting configurations such as 8×50 mL (100,000×g) and 6×50 mL (110,000×g).

Intelligent Control System

• Operational modes include standard centrifugation and ACE integral modes, with ACE technology ensuring consistent results across runs.
• Built-in rotor calculator converts speed/time between rotors quickly.
• Durable 7-inch touchscreen supports gloved operation and provides an intuitive, button-free interface.
• GMP/GLP support with built-in audit trail and seamless USB export of complete run records.

Effortless Convenience

• Tool-free, push-button rotor locking enables secure installation and change within 3 seconds.
• Three door-opening options, including hands-free foot sensor operation.
• Adaptive vacuum system configurable for pre-centrifugation or engaging at set speed.
• Multi-layer sound insulation ensures quiet operation (<59 dB(A)) for a comfortable lab environment.

Applications

• Biological research & pharmaceutical development: from large-volume culture harvesting to high-speed small-volume protein/antibody purification.
• Cell biology, molecular biology & proteomics: separation and precipitation of proteins, exosomes, nucleic acids, organelles; density gradient centrifugation.
• Virology & nanotechnology: high-speed pelleting of viruses, viral particles and nanoparticles using rotors up to 31,000 rpm.
• Bioprocess production: scale-up from research to production for harvest and clarification with large-capacity rotors.
• Diagnostics & clinical biochemistry: clinical blood separation with rotors compatible with blood tube adapters.

Specifications (summary)
Item: Model: MX30R High-Speed Refrigerated Centrifuge
Max. RCF (×g): 110,000×g (MX-F6-50Ti)
Max. Speed (rpm): 31,000 rpm
Max. Capacity: 6×1000 mL (MX-F6-1000CF)
Rotor Recognition: Instant automatic identification
Rotor Locking: Self-locking
Vacuum System: Intelligent vacuum extraction
Display: 7-inch full-color touch screen, 800×480 px resolution
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±2°C
Acceleration/Deceleration: 12 acceleration / 13 deceleration rate selections
Speed Control Accuracy: ±25 rpm
Program Storage: 1000 run programs
Noise Level: <59 dB(A)
Dimensions (W×D×H): 950 mm × 680 mm × 670 mm
Weight (without rotor): 300 kg

Rotor Options (examples)
Name - Model - Capacity (mL) - Max Speed (rpm)
High-Speed Refrigerated Centrifuge - MX30R - 6×1000 - 31,000
MX-S4-1000 Swing-out Rotor - MX-S4-1000-P - 4×1000 - 5,500
MX-F6-1000CF Carbon Fiber Rotor - MX-F6-1000CF - 6×1000 - 9,000
MX-F6-50Ti Titanium Alloy Rotor - MX-F6-50Ti - 6×50 - 31,000
MX-F8-50Ti Titanium Alloy Rotor - MX-F8-50Ti - 8×50 - 30,000
MX-F8-50 Aluminum Alloy Rotor - MX-F8-50 - 8×50 - 27,000
MX-F6-500CF Carbon Fiber Rotor - MX-F6-500CF - 6×500 - 12,000
MX-F6-100CF Carbon Fiber Rotor - MX-F6-100CF - 6×100 - 23,500
MX-F12-50CF Carbon Fiber Rotor - MX-F12-50CF - 12×50 - 20,000
MX-F48-2CF Carbon Fiber Rotor - MX-F48-2CF - 48×2 - 23,000
MX-CF20 Continuous Flow Rotor - MX-CF20 - 1350 - 20,000

Technical specifications

• Model: MX30R
• Maximum RCF: 110,000×g (with MX-F6-50Ti)
• Maximum Speed: 31,000 rpm
• Maximum Capacity: up to 6×1000 mL
• Display: 7-inch full-color touchscreen, 800×480 px
• Temperature Range: -20°C to +40°C; Accuracy ±2°C
• Program Storage: 1000 run programs
• Noise Level: <59 dB(A)
• Dimensions (W×D×H): 950×680×670 mm
• Weight (without rotor): 300 kg
• Rotor recognition: instant automatic identification
• Rotor locking: self-locking, tool-free
• Vacuum system: intelligent vacuum extraction
