Insulin pen folder Dia-Cool KIDS

polyesterfor diabetic childrenisothermal

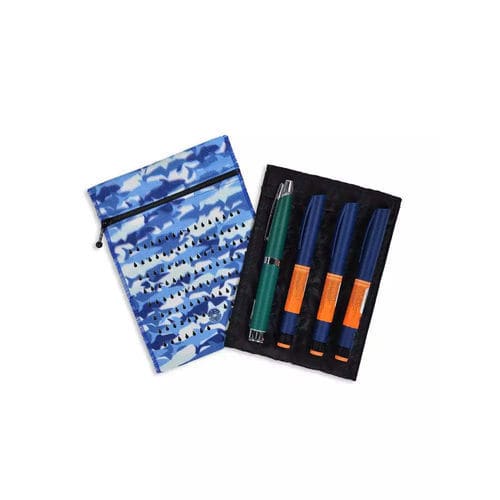

The Dia-Cool Size 4 cooling pouch is designed for children and holds up to 4 insulin pens or 8 vials while maintaining a lower temperature during transport. Its water-evaporation technology provides a lightweight, reusable, electricity-free solution to keep insulin cool for up to 48 hours.

Main features

• Cools up to 12°C lower for approximately 48 hours.
• Operates using cold water only: no coolant pack, no electricity or battery required.
• Compact, lightweight, reusable and durable.
• Heavy-duty zipper designed for intensive use.
• Available in multiple child-friendly prints and colours (e.g. Blue Shark, Pink Shark, Happy Hippo, etc.).
• Carry handle / easy-to-carry format and simple to clean.
• Product bears CE marking and complies with MDR 2017/745.

Available sizes

• Dia-Cool Size 1: 19 x 6.5 cm – for 1 insulin pen.
• Dia-Cool Size 2: 19.3 x 9.8 cm – up to 2 pens or 2 vials.
• Dia-Cool Size 3: 19 x 13.2 cm – up to 3 insulin pens.
• Dia-Cool Size 4: 19 x 15.5 cm – up to 4 pens or 8 vials (model shown).
• Dia-Cool Size 5: 15.2 x 13.2 cm – up to 4 vials or eye-drop bottles.
• Dia-Cool Size 6: 13.2 x 13.2 cm – up to 3 vials or eye-drop bottles.
• Dia-Cool Size 7: 11 x 6.5 cm – for 1 vial or 1 eye-drop bottle.

How it works

• Before first use: immerse the cooling element in water for 1 hour.
• Recharge: after the initial charge, recharge takes about 20 minutes by immersion in cold water.
• Principle: the element containing hydrogel beads uses water evaporation to lower temperature and maintain freshness for about 48 hours depending on external conditions.
• Maintenance and washing: refer to the user manual for detailed instructions.

Technical specifications

• Model: Dia-Cool (Size 4 for the described product).
• Capacity: up to 4 insulin pens or 8 vials.
• Fabric composition: 100% polyester.
• Cooling agent: hydrogel beads (non-flammable, non-toxic).
• Performance: up to -12°C compared to ambient temperature, duration approx. 48 hours (depending on conditions).
• Dimensions (Size 4): 19 x 15.5 cm.
• Packaging dimension: zip pouch 15 x 11 x 0.5 cm.
• Weight: 20–50 grams.
• Certification: CE marked, compliant with Medical Device Regulation (MDR 2017/745).
• Maintenance: consult the user manual provided in PDF.
