Insulin folder Dia-Cool UB-DC05P-2 series

polyesterfor diabetic childrenisothermal

Dia-Cool cooling pouch for children, designed to transport and maintain up to 4 insulin vials or eye-drop bottles at reduced temperature for up to 48 hours using a water-evaporation cooling system. Compact, lightweight and decorated with child-friendly patterns for safe, discreet transport.

Main features

• Cooling pouch for insulin and eye-drop vials, maintains contents up to 12°C below ambient for up to 48 hours.
• Operates with cold water only: no refrigerant cartridge, no electricity or batteries required.
• Compact, lightweight, reusable and long-lasting.
• High-strength zipper for intensive professional or daily use.
• Available in a wide range of prints and colours suitable for children.
• Product bears CE marking and complies with the Medical Device Regulation (MDR 2017/745).

Available sizes

• Dia-Cool Size 1: 19 x 6.5 cm – for 1 insulin pen.
• Dia-Cool Size 2: 19.3 x 9.8 cm – up to 2 pens or 2 vials.
• Dia-Cool Size 3: 19 x 13.2 cm – up to 3 insulin pens.
• Dia-Cool Size 4: 19 x 15.5 cm – up to 4 pens or 8 vials.

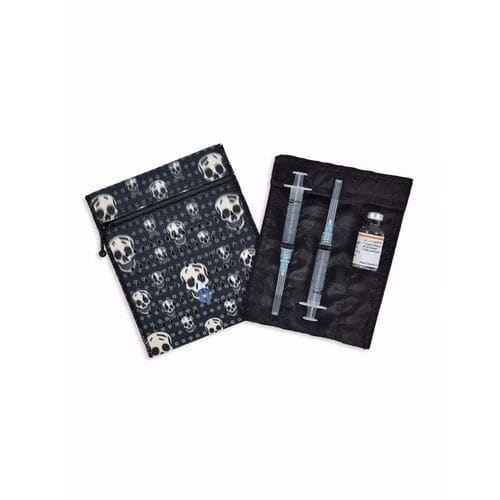

• Dia-Cool Size 5: 15.2 x 13.2 cm – up to 4 vials or eye-drop bottles (model shown).
• Dia-Cool Size 6: 13.2 x 13.2 cm – up to 3 vials or eye-drop bottles.
• Dia-Cool Size 7: 11 x 6.5 cm – for 1 vial or 1 eye-drop bottle.

Instructions / operation

• Before first use: immerse the cooling insert in cold water for 1 hour.
• Subsequent recharge time approx. 20 minutes (immerse the cooling insert in cold water again).
• The pouch maintains vial temperature for approximately 48 hours depending on ambient conditions.
• Warning: do not insert an insulin pen in Size 5 (designed for vials/eye-drops).
• User manual available for consultation (see supplied technical documents).

Technical specifications

• Fabric composition: 100% polyester.
• Cooling agent: hydrogel beads (non-flammable, non-toxic).
• Package dimensions (zip pouch, Size 5): 15 x 11 x 0.5 cm.
• Indicated weight: 20–50 grams.
• Care and washing: refer to the user manual.
