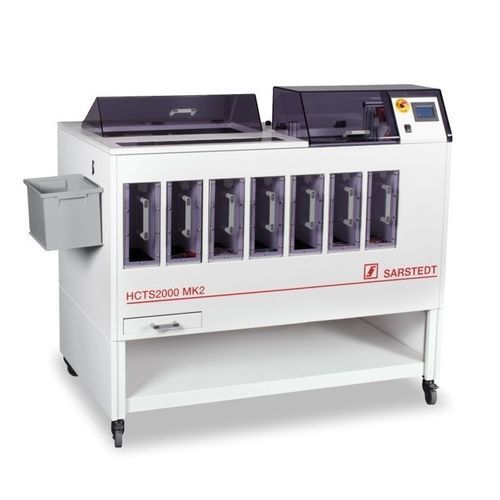

Optical sorter HCTS2000 MK2

automatichigh-speedlaboratory

Overview
The HCTS2000 MK2 is an automated incoming sample sorter designed to register and sort closed primary tubes presented as bulk material into multiple target compartments using barcode information. Optimized for fast and precise detection of incoming samples to streamline downstream laboratory workflows.

Functionality
Sample tubes are detected and recorded using a camera module and barcode reading. Container type and barcode are registered within seconds. The system performs plausibility checks to identify and separate error samples and can sort according to specific criteria or sample-specific instructions from the Laboratory Information System (LIS). The HCTS2000 MK2 accepts material from a bulk loader and distributes tubes to target bins.

Features at a glance

• Sample registration and pre-sorting using camera module and barcode
• Bulk-to-target workflow: from bulk loader to distribution bins
• Sorting by predefined criteria or LIS-driven sample-specific instructions
• Up to 22 distribution targets (7 standard targets; expandable to 22 with extension unit)
• One dedicated error sample box for rejected/flagged samples
• High throughput: up to 2,000 tubes per hour

Available downloads (document names and sizes)

• Data Sheet HCTS2000 MK2 V1.0 — 221.46 KB
• Declarations of conformity — Bulk Sorter HCTS2000 MK2 — 5.00 MB

Technical specifications

• Model: HCTS2000 MK2
• Brand: SARSTEDT
• Sorting method: camera module + barcode reading; optional LIS-driven sample-specific sorting
• Input type: closed primary tubes presented as bulk material (from bulk loader)
• Standard distribution targets: 7 (expandable to 22 with extension unit)
• Target capacity: up to 200 tubes per target (standard configuration)
• Error handling: plausibility checks and dedicated error sample box
• Maximum throughput: up to 2,000 tubes per hour
• Typical operations: sample registration, plausibility checks, pre-sorting, distribution to target bins
