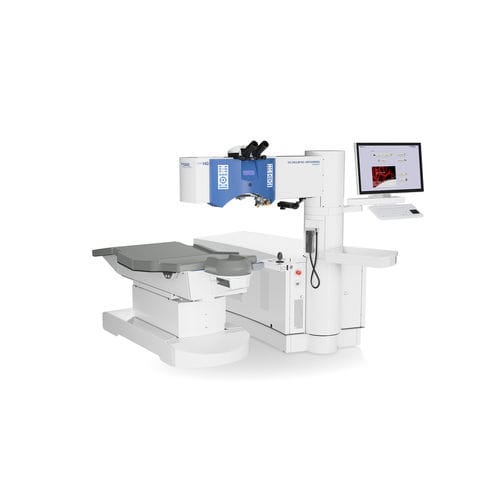

Ophthalmic refractive surgery laser AMARIS® 1050RS

excimerfloor-standing

The SCHWIND AMARIS 1050RS is the product of continuous development work and is the most powerful excimer laser in the AMARIS product family. The innovative laser system delivers an unsurpassed repetition rate of 1050 Hz – currently one of the highest of all excimer lasers on the market – and consequently an extremely short ablation time of just 1.3 seconds per dioptre.1 That means even greater safety and comfort for the patient. The risk of the cornea drying out is minimised, and the length of time the patient has to fixate on the green light is reduced. It is a performance leap that increases safety and enhaces patient comfort.

Active 7D eye tracking means that the SCHWIND AMARIS 1050RS combines space and time in an innovative technology. The state-of-the-art “Latency-Free Tracking” (virtual) takes account of eye movements occurring during the period between acquisition of the eye-tracker image and triggering of the subsequent laser pulses – thus, the new target position is known in advance. The ablation process without latency error offers enhanced precision to patient.

The integrated solution with SCHWIND AMARIS excimer­ lasers

C-­eye* puts modern CXL technology together with SCHWIND AMARIS excimer lasers. This lets you perform CXL quickly and easily following a refractive or therapeutic laser treatment, without requiring the patient to change position. The device and the patient’s eye are aligned precisely and easily using the joystick of the AMARIS’ patient bed.

If there is a laser treatment following CXL, the SCHWIND AMARIS adjusts for the change in ablation behaviour10 with a specially adapted profile.

Benefits at a glance

Optimized CXL workflow with SCHWIND AMARIS
Elevated safety and effectiveness through preset application protocols and special irradiation profile
Wide range of applications and high variability
Treatment of ultrathin corneas (sub400)
Simple operation and mobility

High performance laser for refractive and therapeutic corneal surgery

Fast ablation of 1.3 seconds per dioptre* can contribute to patient safety and comfort

Unique 7D eye tracking

SCHWIND CAM offers broad range of applications

Gentle & incision-free treatment with SmartSurfACE

Convenience for doctor and patient through swivel laser arm

User friendly design and high-gloss finish

Latency-Free Tracking in the 7th dimension

The state-of-the art Latency-Free Tracking considers the time factor, i. e. the 7th dimension. Latency-Free Tracking compensates for eye movements that occur in the period between acquisition of the eye-tracker image and triggering of the subsequent laser pulses. The eye tracker performs a motion analysis on the basis of previous eye positions during the treatment.

It then calculates, for all six dimensions, where the corneal target position will be at the moment of the next two consecutive pulses. The scanner moves to this position before the next pulse is triggered. The laser system knows when and where future laser pulses need to be triggered. The effect of this is latency-free ablation – and an ideal combination of speed and precision during the laser treatment.
