Ophthalmic refractive surgery laser AMARIS® 750S

excimerfloor-standing

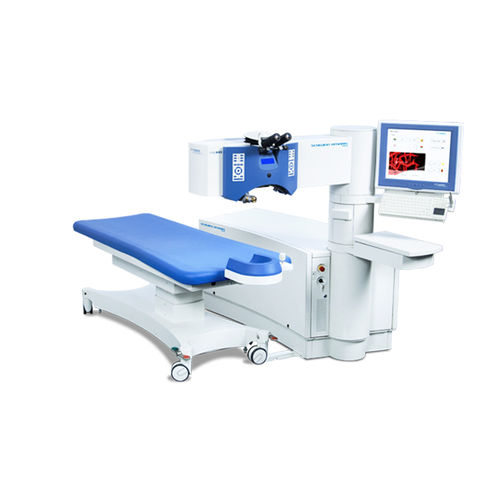

The SCHWIND AMARIS 750S offers high performance, proven outcomes and safety. The laser system ablates the cornea at two difference fluence values, thereby achieving a good combination of speed and precision. A very fine laser spot, with a diameter of just 0.54 millimeters (FWHM) ensures smooth corneal modelling.

With a repetition rate of 750 Hz, the SCHWIND AMARIS 750S achieves very short treatment times. The 6D eye tracker takes 1050 measurements per second to monitor the exact position of the eye in six dimensions. It actively compensates for any deviation with an ablation time of up to 1.5 seconds per dioptre.

Precise: 6D eye tracking

Treatment success is enhanced by SCHWIND’s proprietary active 6D eye tracker which enables a unique level of precision. It is linked to the SCHWIND diagnostic systems and captures all eye motion (static as well as dynamic) during the procedure, for outstanding outcomes.

During the procedure, it precisely determines and compensates for the following eye movement dimensions:

X-axis
Y-axis
Horizontal rolling
Vertical rolling
Eye rotation around the visual axis: static and dynamic cyclotorsion
Z-axis: active compensation for upward and downward movements

Changes in pupil size are detected, and the laser is adjusted as necessary. In conjunction with the 6D eye tracker, this automatic function ensures correct centring throughout the procedure.

The integrated solution with SCHWIND AMARIS excimer­ lasers

C-­eye* puts modern CXL technology together with SCHWIND AMARIS excimer lasers. This lets you perform CXL quickly and easily following a refractive or therapeutic laser treatment, without requiring the patient to change position. The device and the patient’s eye are aligned precisely and easily using the joystick of the AMARIS’ patient bed.

If there is a laser treatment following CXL, the SCHWIND AMARIS adjusts for the change in ablation behaviour10 with a specially adapted profile.

Benefits at a glance

Optimized CXL workflow with SCHWIND AMARIS
Elevated safety and effectiveness through preset application protocols and special irradiation profile
Wide range of applications and high variability
Treatment of ultrathin corneas (sub400)
Simple operation and mobility

High performance laser for refractive and therapeutic corneal surgery

Active 6D eye tracking

SCHWIND CAM offers broad range of applications

Gentle & incision-free treatment with SmartSurfACE

Convenience for doctor and patient through swivel laser arm

User friendly design
