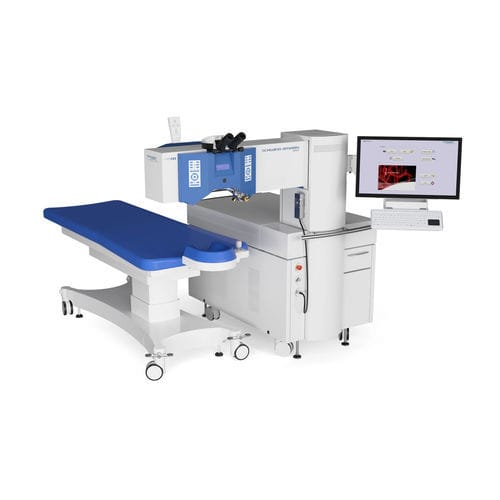

Ophthalmic refractive surgery laser AMARIS® 500E

excimer

The SCHWIND AMARIS 500E combines efficiency and safety. Automatic Fluence Level Adjustment (AFLA) ensures an optimal balance between the total number of laser pulses and the energy delivered. The result is fast ablation with advanced smoothening of the cornea.

The laser system, with a 500 Hz repetition rate, is well complemented by a 5D eye tracker, which compensates for eye movements in five dimensions. The SCHWIND AMARIS 500E is trusted by eye surgeons, and the outstanding performance of this compact laser system is verified by numerous studies.

Precise: 5D eye tracking

Treatment success is enhanced by SCHWIND’s proprietary active 5D eye tracker which enables a unique level of precision. It is linked to the SCHWIND diagnostic systems and captures all eye motion (static as well as dynamic) during the procedure, for outstanding outcomes.

During the procedure, it precisely determines and compensates for the following eye movement dimensions:

X-axis
Y-axis
Horizontal rolling
Vertical rolling
Eye rotation around the visual axis: static and dynamic cyclotorsion

Changes in pupil size are detected, and the laser is adjusted as necessary. In conjunction with the 5D eye tracker, this automatic function ensures correct centring throughout the procedure.

C-eye Corneal Crosslinking

The integrated solution with SCHWIND AMARIS excimer­ lasers

C-­eye* puts modern CXL technology together with SCHWIND AMARIS excimer lasers. This lets you perform CXL quickly and easily following a refractive or therapeutic laser treatment, without requiring the patient to change position. The device and the patient’s eye are aligned precisely and easily using the joystick of the AMARIS’ patient bed.

If there is a laser treatment following CXL, the SCHWIND AMARIS adjusts for the change in ablation behaviour10 with a specially adapted profile.

Benefits at a glance

Optimized CXL workflow with SCHWIND AMARIS
Elevated safety and effectiveness through preset application protocols and special irradiation profile
Wide range of applications and high variability
Treatment of ultrathin corneas (sub400)
Simple operation and mobility

Fast ablation of 2.0 seconds per dioptre*

Active 5D eye tracking

SCHWIND CAM offers broad range of applications

Gentle & incision-free treatment with SmartSurfACE

Compact and space-saving

Further advantages

Intelligent Thermal Effect Control (ITEC)
Higher safety through corneal temperature monitoring and laser pulse sorting for minimum heating, resulting in very gentle ablation

Automatic Fluence Level Adjustment (AFLA)
Balanced pulse number and energy for the perfect combination of fast treatment and high corneal smoothness

Integrated slit lamp
Immediate postoperative control down to the deep layers of the cornea

Corneal Collagen Crosslinking lamp
Lamp integrated in the workflow – Ready to use immediately, no additional adjustment necessary

Swivelling laser arm and powered swivelling bed
Comfort and convenience for patient, doctor and assistants

Treatment Assistant Manager (TAM)
Easier operation through controlled sequence of the operation steps light intensity, microscope magnification and fixation points; each step is individually adjustable

Automatic video record of treatment
Many teaching, reviewing and marketing possibilities
