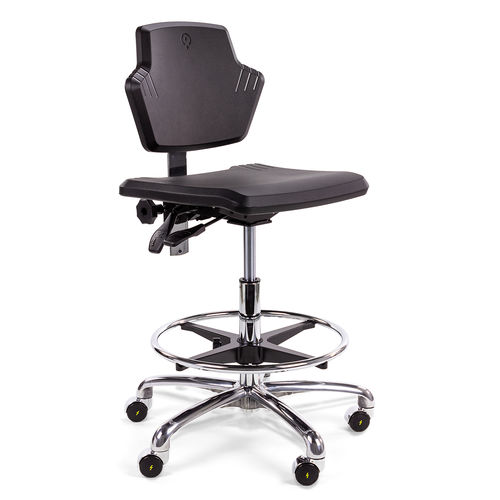

Laboratory chair Spirit 1501 ESD

for clean roomson castersheight-adjustable

Overview
The Score Spirit 1501 ESD is a compact, durable ESD-safe work stool designed for medium-height workstations. With an adjustable seat height of 53–72 cm, an aluminium star base and an ergonomic backrest with manual height adjustment, it suits laboratories, electronics assembly and clean production lines where controlled dissipation of static electricity is required.

Key features

• Compact, lightweight industrial design
• ESD-safe: antistatic and highly conductive; complies with IEC 61340-5-1 (tested by SP Technical Research Institute)
• Three working-height variants in the Spirit ESD range (1500 low, 1501 medium, 1502 high)
• Height-adjustable seat (53–72 cm for the 1501)
• Ergonomic backrest with manual height adjustment to increase shoulder clearance
• Sturdy foot ring for elevated workstations
• Hardwearing, easy-to-clean materials; resistant to common chemicals

Applications
Intended for ESD-controlled environments where static charge must be safely dissipated. Typical uses include electronics assembly, laboratory benches, cleanroom production lines and other workplaces handling ESD-sensitive components.

Options and variants
Standard delivery is without armrests; optional Armrests 5 ESD (height- and width-adjustable) are available. The Spirit ESD line is offered in three working heights to match various work surface levels and with options for adjustable or fixed seat angle.

Materials & construction
Frame: aluminium star base (Ø 60 cm) as standard. Seat and backrest options: natural beech or ESD-safe polyurethane (PU SP ESD) that is highly wear-resistant and easy to clean. Conductive elements channel static discharge to ground.

Technical specifications

• Model name: Spirit 1501 ESD
• Seat height (1501): adjustable 53–72 cm
• Recommended work surface height: approx. 80–100 cm
• Base: aluminium star base, round smooth Ø 60 cm, ESD-capable
• Cover materials: PU SP ESD (ESD-safe polyurethane)
• Variants: adjustable seat angle; fixed seat angle
• Armrests: Armrests 5 ESD (height and width adjustable, optional)
• Floor contacts / castors: soft swivel castors Ø 50 mm ESD (zww51) for hard floors; soft swivel castors with brake Ø 50 mm ESD (zww56) for hard floors; trumpet glides (ESD) for all ESD floors
• Foot support: sturdy foot ring for high workplaces
• Standards: complies with IEC 61340-5-1; tested by SP Technical Research Institute
