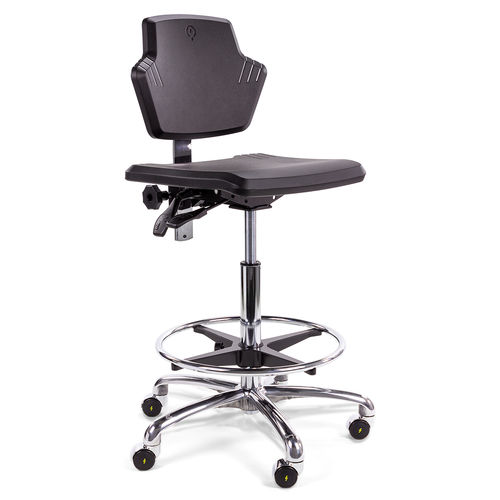

Laboratory chair Spirit 1502 ESD

for clean roomson castersheight-adjustable

Product overview
The Score Spirit 1502 ESD is a compact, ESD-safe work chair for varying industrial work heights. Seat height adjusts from 59 to 84 cm. It features an aluminium star base (ø 60 cm), an ergonomic backrest with manual height adjustment and a supportive foot ring for high workstations. Antistatic and highly conductive, it dissipates built-up electricity through conductive components and is suitable for environments with ESD-sensitive components.

Key benefits

• Compact design with aluminium star base
• ESD-safe: antistatic and highly conductive; compliant with IEC 61340-5-1
• Three working-height variants (Spirit 1500 / 1501 / 1502)
• Height-adjustable seat (59–84 cm)
• Ergonomic backrest with manual height adjustment
• Supportive foot ring for high workplaces
• Hardwearing, easy to clean materials

Design and ESD compliance
The frame is aluminium as standard. Seat and back are offered in natural beech or ESD-safe polyurethane (PU SP ESD), both hardwearing and resistant to many chemicals. Conductive elements safely dissipate static charge. The chair complies with IEC 61340-5-1 and has been tested by SP Technical Research Institute (Sweden).

Variants and usage
The Spirit 1502 is the tallest variant in the Spirit ESD range, with a seat height range of 59–84 cm for high workplaces. The chair is normally supplied without armrests; Armrests 5 ESD (height and width adjustable) are available as an option. Two seat-angle options are offered: adjustable or fixed.

Technical table
Materials: PU SP ESD
Variants: Adjustable seat angle; Fixed seat angle
Armrest: Armrests 5 ESD — height & width adjustable
Base: Aluminium base round, smooth ø 60 cm
Floor contacts: Soft swivel castors ø 50 mm ESD (zww51); Soft swivel castors brake loaded ø 50 mm (zww56); Trumpet glides (ESD)
Height indications: Seat height 59–84 cm; Recommended work height 90–115 cm

Technical specifications

• Model: Spirit 1502 (ESD variant)
• Seat height: 59–84 cm
• Recommended work height: 90–115 cm
• Frame: Aluminium star base ø 60 cm
• Seat/back materials: Natural beech or PU SP ESD
• ESD properties: Antistatic and highly conductive; IEC 61340-5-1 compliant; tested by SP
• Floor contacts options: Soft swivel castors ø 50 mm (zww51); Soft swivel castors brake loaded ø 50 mm (zww56); Trumpet glides (ESD)
• Armrest option: Armrests 5 ESD — height & width adjustable
• Variants: Three working-height variants; adjustable or fixed seat angle
