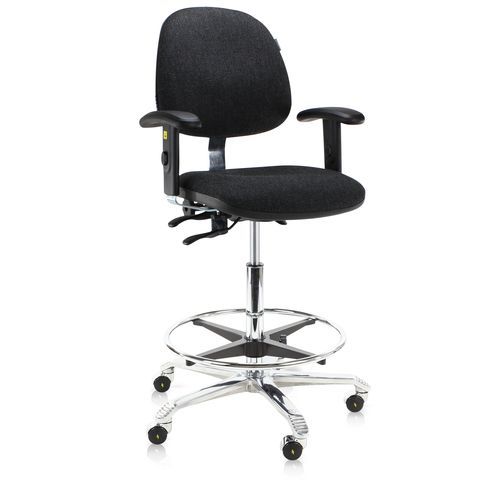

Laboratory chair Ergo 2302 ESD

for clean roomswith armrestson casters

Product overview
The Score Ergo 2302 ESD is an ergonomically designed work chair for ESD-safe environments. Antistatic and conductive, it dissipates accumulated electricity via conductive components. It offers a tall adjustment range and is suitable for varied users requiring a high working position.

Key features

• Ergonomic, multi-adjustable work chair designed for ESD-protected workplaces
• Tallest variant in the Ergo ESD range — height-adjustable (seat height 60–85 cm)
• Available coverings: Dralon ESD or black leatherette ESD; three colour options
• Variants with adjustable or fixed seat angle
• Armrests 5 ESD — height and width adjustable

Product details
The Ergo 2302 ESD features adjustable backrest and seat angles for individual positioning. Its durable construction provides stable support and helps reduce musculoskeletal complaints related to poor posture. The design is functional and long-established.

Materials, variants and options

• Coverings: Dralon ESD; Leatherette black ESD
• Variants: Adjustable seat angle; Fixed seat angle
• Armrests: Armrests 5 ESD — height and width adjustable
• Base: Aluminium base, Ø 67 cm
• Floor contacts / castors: Soft swivel castors Ø 50 mm (zww51) for hard ESD floors; Soft swivel castors with brake Ø 50 mm (zww56) for hard ESD floors; Trumpet glides (ESD) for all ESD floors

Ergonomics and adjustments
The chair includes inflatable lumbar support and a seat slider that increases seat depth by approx. 6 cm. Backrest and seat angle adjustments allow users to tailor posture. Seat height is adjustable from 60–85 cm. Recommended work surface height is shown as 90–115 cm.

Compliance and testing
Complies with IEC 61340-5-1 for ESD protection and has been tested by SP Technical Research Institute of Sweden.

Usage scenarios
Designed for professionals working in ESD-safe environments such as electronics assembly, laboratories, cleanrooms and inspection stations where conductive/antistatic seating and higher working positions are required.

Technical specifications

• Model: Score Ergo 2302 ESD
• Brand: Score
• Seat height (adjustable): 60–85 cm
• Recommended work surface / work height: 90–115 cm
• Materials: Dralon ESD; Leatherette black ESD
• Variants: Adjustable seat angle; Fixed seat angle
• Armrests: Armrests 5 ESD — height & width adjustable
• Base: Aluminium base Ø 67 cm
• Floor contacts / Castors: Soft swivel castors Ø 50 mm (zww51); Soft swivel castors with brake Ø 50 mm (zww56); Trumpet glides (ESD)
• Ergonomics: Inflatable lumbar support; Seat slider (approx. +6 cm seat depth)
• Function: Antistatic, conductive — dissipates accumulated electricity
• Standards: Complies with IEC 61340-5-1; tested by SP Technical Research Institute (Sweden)
• Coverings: Dralon or leatherette in 3 colour options
