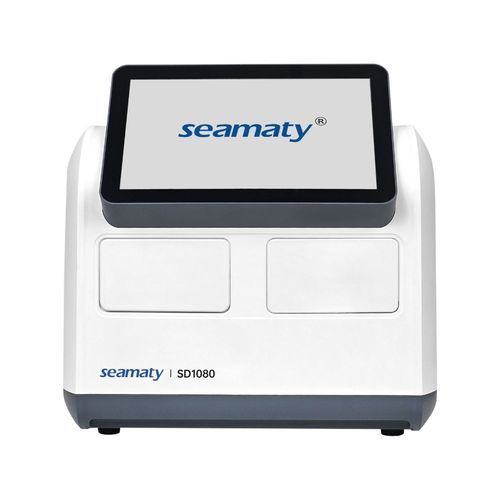

Fully automatic biochemistry analyzer SD1080

benchtopmicrofluidicserum

The Seamaty SD1080 is a fully automated microfluidic dry biochemistry analyzer designed for rapid, on-site laboratory-level testing with minimal operator steps. It integrates microfluidic detection and a novel reagent rotor design to deliver reliable results while reducing contamination risk and maintenance needs.

Operation

• Step 1 — Add sample
• Step 2 — Place rotor
• Step 3 — Insert rotor
• Step 4 — Read results

Key features

• Advanced microfluidic technology for laboratory-grade accuracy
• Dual biochemistry detection channels enabling parallel processing
• New-type reagent rotor with patented design to minimize cross-contamination
• Fully automated workflow with no pre-processing required
• Supports multiple sample types: whole blood, capillary blood, plasma, and serum
• No fluidic architecture to reduce system complexity, maintenance and associated costs
• Flexible reagent rotor formats (round, sector, coagulation) to accommodate individual parameter tests or combination panels
• Wide range of chemistry panels and reagent kits available to expand on-site diagnostic capabilities

Available chemistry panels / reagent kits

• 14 General Chemistry Kit
• 18 General Chemistry II Kit
• 19 General Chemistry III Kit
• 8 Renal Function Kit
• 10 Liver Function Kit
• 7 Electrolyte Kit
• 5 Lipid Kit
• 5 Cardiac Kit
• 17 Conventional Chemistry Kit
• 14 General Chemistry B Kit
• 13 Livernal Function Kit
• 10 Relyte Kit
• 10 Liver Function Plus Kit
• 9 Comprehensive Kit

Technical specifications

• Product Model: Seamaty SD1080 Fully Automated Microfluidic Dry Chemistry Analyzer
• Sample type: Whole blood, capillary blood, plasma, serum
• Sample volume: Round Rotor 90–120 μl; Coagulation Rotor 300 μl; Sector Rotor 50–70 μl
• Test Channel: Biochemistry I and Biochemistry II (dual channels)
• Resolution: 0.001 Abs
• Working conditions: Temperature 10–30 ℃; Humidity ≤85%
• QC & Calibrate: Automatic and real-time
• Rated Power: 120 VA
• Testing time: 9–12 minutes / 3 samples
• Temperature control: 37 ℃ ±0.3 ℃
• Display: 9.0 inch, 1024 × 600
• Connectors: 4 USB interfaces, 1 LAN interface
• Storage: MAX 500,000 results
• Light source: Halogen tungsten lamp, shelf life over 2500 hours
• Testing Method: Endpoint, kinetic, two-point
• Weight: 5.88 Kg
