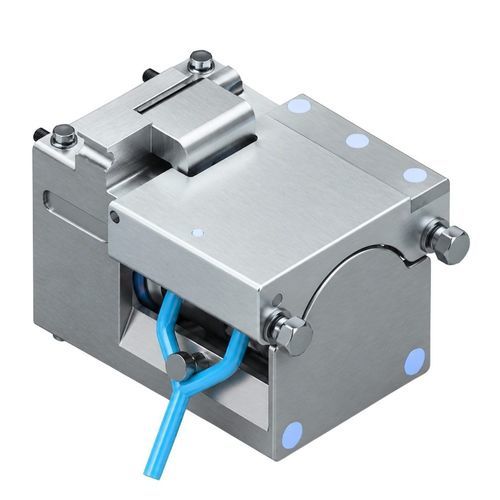

Modular laboratory peristaltic pump HYDRA SLIM

compactfor liquid dispensing

Overview
The SETIN HYDRA SLIM peristaltic dispenser is engineered for liquid filling processes in pharmaceutical and biotech production, focusing on precise dosing, hygienic integrity and continuous operational stability. The compact, modular design integrates sterilizable components and is optimized for multi-head configurations in automated filling lines.

Benefits

• Maximum sterility: liquid contacts only tubing and nozzles to minimize cross-contamination risk.
• Flexibility and precision: rapid format changeover and accurate dosing down to very small volumes.
• Operational hygiene: components designed for straightforward cleaning and validated sterilization procedures.

Safety and maximum cleanliness
Hygiene and aseptic process reliability are central to the HYDRA SLIM concept. The dispenser uses PEEK leaf springs instead of metal springs; these elements are fully sterilizable in autoclave, simplifying contamination control in GMP environments and enhancing aseptic dosing safety.

Construction options

• Stainless steel (AISI 304L) – for strict hygienic requirements and high durability.
• Aluminium – lighter option for moderate mechanical/environmental demands.
• Polyamide – lightweight and chemically resistant alternative for cost-sensitive applications.

Modular design & installation
HYDRA SLIM features a compact footprint engineered for multi-head installation. Dispensers can be mounted in series with a 130 mm pitch and configured modularly according to the required number of dosing lines, facilitating integration into automated filling systems.

Cleaning
All wet-contact components are accessible for cleaning and fully compatible with autoclave sterilization.

Documentation
Brochure available: Peristaltic dispenser brochure (product brochure available as PDF).

Technical specifications

• Dosing accuracy: up to ±0.5%.
• Compatible tubing inner diameters: 0.5 mm to 8 mm.
• Easy format changeover for different container and nozzle types.
• PEEK leaf springs fully sterilizable in autoclave.
• Optimized for multi-head installations; dispensers installable in series with 130 mm pitch.
• Modular configuration according to number of dosing lines.
• Available construction materials: AISI 304L stainless steel, aluminium, polyamide.
