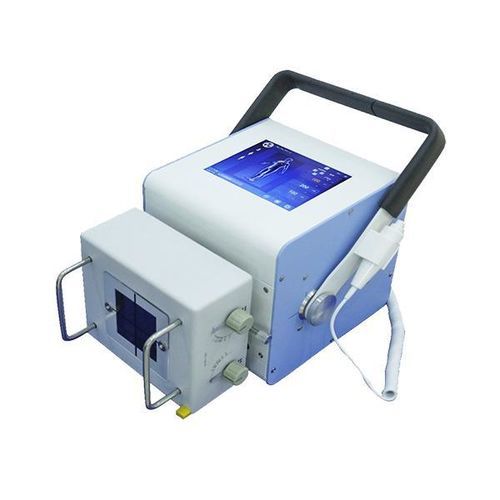

Digital X-ray system NK-100YL

for multipurpose radiographywithout tableportable

Overview
Portable X-ray machine designed for mobile digital radiography of human limbs and chest. Compact, lightweight unit suitable for hospitals, clinics, examination centers, ambulances, disaster relief and field operations.

Key features

• Suitable for examinations and diagnosis of human limbs and chest in medical institutions and emergency/field scenarios.
• Simple construction with small footprint; no requirement for a lead-shielded darkroom.
• Easy to carry and operate across different locations; supports on-site and special-case radiography.
• Optional mobile stand available for flexible positioning and bedside imaging in wards.
• Three exposure control methods: remote control, hand switch and touch screen.
• Fault self-protection and self-diagnosis with high-precision tube voltage and tube current control.
• High-frequency inverter technology provides stable high-voltage output for consistent image quality.
• Compatible with DR flat panel detector to create a DR digital radiography system.

Intended use

• Can be combined with a photographic flat table to form a standard X-ray unit for radiographic inspection and medical diagnosis.

Technical specifications

• Power: 5 kW
• KV range: 40 kV – 110 kV
• mA settings: 100 mA, 80 mA, 63 mA, 50 mA, 32 mA
• mAs range: 0.32 – 315 mAs
• Exposure time range: 0.01 – 6.3 s
• Input power: 220 V ±10%, 50 Hz/60 Hz
• Host dimensions: 370 (L) × 260 (W) × 230 (H) mm (packaged size: 61 cm × 43 cm × 46 cm)
• Weight: Net 21 kg; Gross (packaged) 32 kg
• Applicable anatomy: Human limbs and chest
• Use scenarios: Hospitals, wards, examination centers, field and emergency imaging

Logistics & packaging

• Packaging: Waterproof and shockproof carton
• Typical shipment ports: Qingdao, Ningbo, Shanghai
• Lead time estimates: 1–10 pcs: ~3 days; 11–50 pcs: ~10 days; 51–200 pcs: ~20 days; more than 200: to be negotiated
