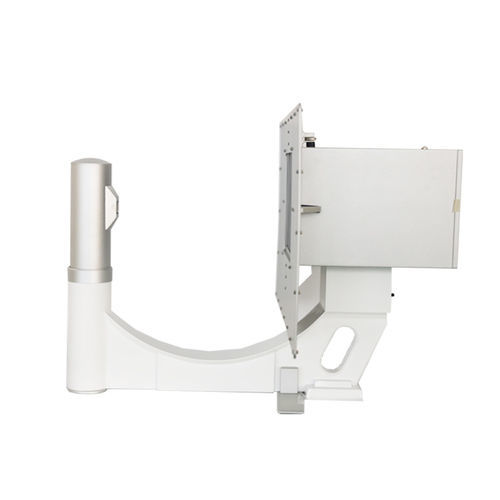

Mobile C-arm Hand Held

with flat panel detector

Handheld fluoroscopy system with an 8-inch front display designed for rapid fluoroscopic inspection of small or thin anatomical parts and for use in field or laboratory environments. Intended for hospital orthopedics, veterinary diagnostics, scientific research/testing and other non-destructive testing scenarios.

Scope of application:

• Mainly used in hospital orthopedics for X-ray examination of limbs and other smaller or thinner anatomical parts
• Used for veterinary medical diagnostics
• Use in scientific research and testing environments
• Use in other non-destructive testing situations

Working principle / Structural composition:

• Uses X-rays to penetrate the inspected object and displays the internal structure image on the front-end LCD of the X-ray receiver
• System consists of a high-voltage generator, X-ray tube, X-ray receiver, beam limiter, rack and power supply

Key features:

• C-shaped housing made of ABS engineering plastics for reduced weight and ergonomic handling
• Compact main unit size: 63 cm × 42 cm × 25 cm for easy portability
• 8-inch high-brightness front display with low noise and clear black-and-white image rendering
• Operable indoors and outdoors without requirement for a darkroom
• Multiple optional functions available; host operating frequency 20 KHz
• Designed service life of the complete unit: 10 years
• One-button power on/off operation

Product purpose:

• Can be combined with a photographic flat table to form a conventional X-ray unit for radiographic inspection and medical diagnosis

Packaging & Delivery:

• Packaged in waterproof and shockproof cartons
• Typical shipment ports: Qingdao, Ningbo, Shanghai

Technical specifications:

• Effective field of view: ≤220 × 160 mm
• Maximum inspected object thickness: ≤300 mm
• X-ray tube operating voltage: 45–90 KV (continuous adjustment)
• Voltage regulation accuracy: ≤±10%
• X-ray tube operating current: 0.25–0.5 mA (continuous adjustment)
• Current stability accuracy: ≤±20%
• Focus position and reference axis deviation: ±1 mm
• Image resolution: ≤3 lp/mm
• Mainframe working frequency: 20 KHZ
• Other mainframe specification (dose rate): ≤0.33 mGy/h
• Input power supply: AC 220V ±10%
• Main unit size: 63 cm × 42 cm × 25 cm
• Main unit net weight: ≤9 kg
• Optional functions: refer to list of optional features
