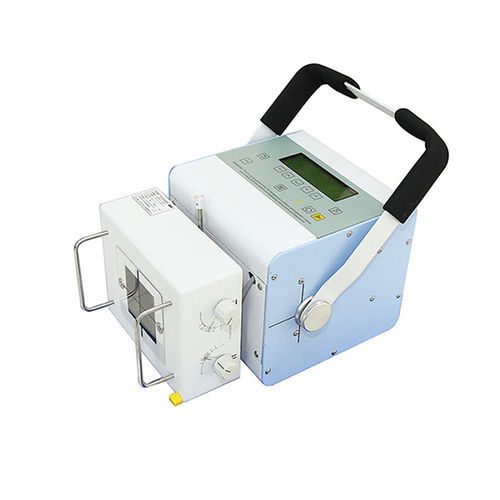

Digital X-ray system NK-100YL-Button

for multipurpose radiographyfor chest radiographywithout table

Overview
Portable X-ray System NK-100YL-Button is a compact, lightweight portable DR X-ray system designed for imaging human limbs and chest in field, emergency and bedside situations. Compatible with DR flat panel detectors to enable digital radiography and offering multiple exposure control methods for flexible operation.

Key features

• Wide application for examination and diagnosis of human limbs and chest; suitable for hospitals, clinics, physical examination centers, ambulances, disaster relief and first aid.
• Simple structure, small size and light weight; easy to carry and operate without environmental restrictions or the need to build a lead-shielded darkroom.
• Portable frame and combined head design; folding support mechanism enables on-site X-ray photography for special occasions.
• Optional mobile rack for flexible bedside shooting and adaptation to different workstations.
• Three exposure control methods available: remote control, hand switch and touchscreen/interface buttons.
• Fault self-protection and self-diagnosis with high-precision control of tube voltage and tube current.
• High-frequency inverter technology provides stable high-voltage output for good image quality.
• Compatible with DR flat panel detectors to form a DR digital X-ray photography system.

Commercial information

• FOB Price: US $0.5 - 9,999 / Piece
• Minimum Order Quantity: 100 Piece(s)
• Supply Ability: 10000 Piece(s) per Month
• Packaging & Delivery: waterproof and shockproof carton; typical ports: Qingdao, Ningbo, Shanghai
• Package size and gross weight example: 61cm × 43cm × 46cm, G.W.: 32 kg
• Lead time (est.): 1–10 pcs: 3 days; 11–50 pcs: 10 days; 51–200 pcs: 20 days; >200: to be negotiated

Technical specifications

• Model: NK-100YL-Button
• Power: 5 kW
• kV range: 40 kV - 110 kV
• mA range: 100 mA, 80 mA, 63 mA, 50 mA, 32 mA
• mAs range: 0.32 - 315 mAS
• Exposure time range: 0.01 - 6.3 s
• Input power type: 220 V ±10%, 50 Hz ±1 Hz
• Machine dimension: 370 (L) × 260 (W) × 230 (H) mm
• Machine weight: 21 kg
• Applicable scope: human limbs and chest
• Adapted scenes: hospitals, wards, clinics, physical examination centers and other medical institutions
