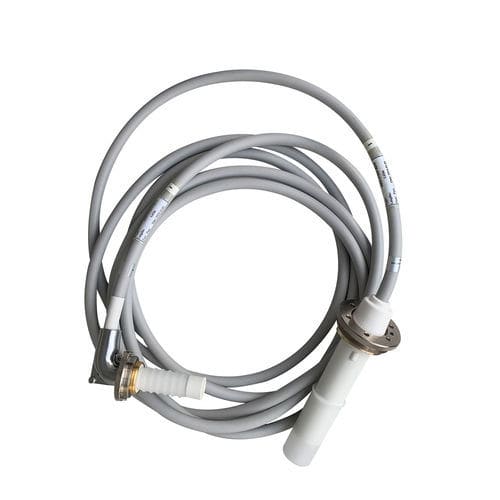

Medical cable

plug-in type4-wire

Short Description
The high-voltage cable connects the high-voltage generator and the x-ray tube head in large and medium-sized x-ray machines. The function is to send the high voltage output by the high voltage generator to the two poles of the x-ray tube, and send the heating voltage of the filament to the filament of the x-ray tube.

Classification
The structure of high-voltage cables: according to the arrangement of the central lines, there are two types: coaxial (concentric) and non-coaxial (non-concentric).

Precautions for use

• Prevent excessive bending. Bending radius should not be less than 5-8 times the diameter of the cable to avoid cracks and reduce insulation strength.
• Always keep the cable dry and clean to avoid erosion by oil, moisture and harmful gases to prevent rubber aging.
• Cable accessories can be ordered separately.
• When the high voltage cable is used, the bending radius should not be less than 66 mm.

Technical Features / Key Data
Electrical Data:
Rated Voltage: 75kVdc
Shield Resistance: 0.010 Ohm/m
Coverage Shielding Braid: >95%
Cable Capacity: < 120 pF/m
Test Voltages:
High Voltage Insulation: 90kVdc
Low Voltage Insulation: 500 Vac

Mechanical Data: Cable:
Outer Diameter: 16.5 mm ±0.5 mm
Bending Radius: > 150 mm
Low Voltage Conductor: 2 x 1.5 mm²
Common Conductor: 2 x 0.75 mm²
Conductor Resistance: 0.013 Ohm/m
Cable Sheath Colour: Light grey

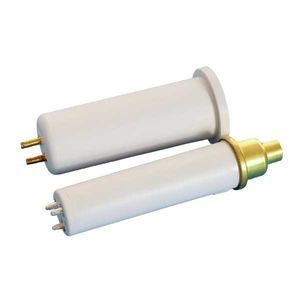

Mechanical Data: Plug:
Multiple Contact Pin: 8 point contact
Max. Temperature: 110 °C
Flanges: Demountable
Extremely Short Sleeve: 34 mm
Small Plug Diameter: 40 mm
Solderless Connection: (EMC grounding)

Cable specifications (summary)
Cable specifications: 75/90KV Straight/elbow · 75KV CA1-CA11 · 75/90KV Straight-CA11
Conductor nominal cross section: 1.8 mm² (typical) · Material: Tinned copper · Twist: Left
High pressure insulation: color White · Material: Elastomer
Sheath material: PVC · Sheath thickness: 1.5 ± 0.3 mm · Sheath diameter examples: 18.5 ± 0.5 mm, 14.5 ± 0.5 mm (variants)

Usage / Usage Scenario
Cable sheath appearance should be smooth and uniform diameter, with no joints, bubbles or bumps. Weave shield density is not less than 90%. The minimum thickness of the cable insulation and sheath must be at least 85% of nominal thickness. Insulation between core and insulated wire and between core and ground cable should withstand AC 1.5 kV for 10 minutes without breakdown. Insulation between core and shield should withstand DC 90 kV for 15 minutes without breakdown. The plug body should withstand at least 1000 drop-off tests without damage. DC resistance of conductor and ground cable: not more than 11.4 + 5% Ω/m. Insulation resistance of the insulation core wire: not less than 1000 MΩ·Km. The cable and each part should meet RoHS and REACH related requirements.

Packaging & Delivery
Packing for high voltage cable: Waterproof carton
Packing size: 51 cm × 50 cm × 14 cm
Gross Weight: 12 KG · Net Weight: 10 KG
Lead time (estimated): Quantity 1-10 → 3 days · 11-20 → 7 days · 21-200 → 15 days · >200 → To be negotiated

Caractéristiques / spécifications techniques

• Brand: Newheek
• Model / Commercial designation: Medical elbow high voltage cable
• Available specifications: 75KV, 90KV
• Rated Voltage: 75 kV DC
• High Voltage Insulation Test: 90 kV DC
• Low Voltage Insulation: 500 Vac
• Shield Resistance: 0.010 Ohm/m
• Coverage Shielding Braid: >95%
• Cable Capacity: < 120 pF/m
• Outer Diameter (typical): 16.5 mm ±0.5
• Bending Radius (recommended): >150 mm (minimum usage note also indicates ≥66 mm)
• Low Voltage Conductor: 2 x 1.5 mm²
• Common Conductor: 2 x 0.75 mm²
• Conductor Material: Tinned copper
• Conductor Resistance: 0.013 Ohm/m
• Cable Sheath Colour: Light grey
• Sheath Material: PVC · Sheath Thickness: 1.5 ±0.3 mm
• Multiple Contact Pin: 8 point contact
• Max. Operating Temperature: 110 °C
• Flanges: Demountable
• Extremely Short Sleeve: 34 mm · Small Plug Diameter: 40 mm
• Solderless Connection: EMC grounding
• Compliance: RoHS and REACH related requirements
