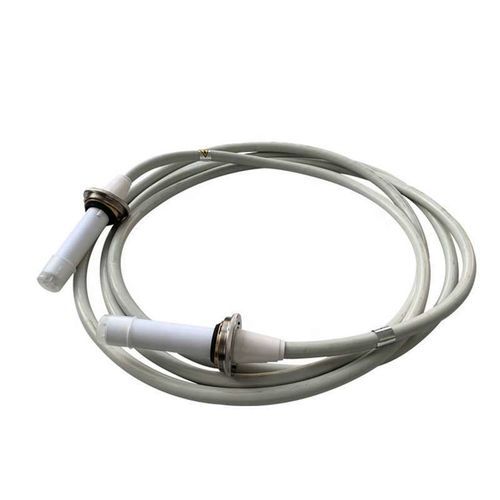

Medical cable

4-wire

Short Description
High-voltage cable designed for DC high-voltage connections between X‑ray tubes and generators. Suitable for medical and industrial X‑ray systems (mobile/portable X‑ray, DR, CT, C‑arm, angiography) and low-power high-voltage test equipment. Available in straight and elbow connector versions.

Features

• Compatible with DC high-voltage X‑ray systems (medical and industrial NDT, DR, CT).
• Variants: 75 kV for tube voltages < 150 kV; 90 kV for tube voltages up to 150 kV and for moving applications.
• Connects X‑ray tube to high-voltage generator.
• Connector styles: straight or elbow.
• Custom cable lengths and separate cable accessories available on request.
• Minimum bending radius in service should not be less than 66 mm.

Specification
Refer to HV section plan diagram for table. Operating temperature: -40 °C to 70 °C.
Standard length: 3 m (custom lengths available).

Electrical Data
Rated voltage: 75 kV DC
Shield resistance: 0.010 Ohm/m
Shield braid coverage: >95%
Cable capacitance: < 120 pF/m

Test Voltages
High-voltage insulation (test): 90 kV DC
Low-voltage insulation (test): 500 Vac

Mechanical Data: Cable
Outer diameter: 16.5 mm ± 0.5 mm
Bending radius: > 150 mm (mechanical minimum)
Low-voltage conductor: 2 × 1.5 mm²
Common conductor: 2 × 0.75 mm²
Conductor resistance: 0.013 Ohm/m
Sheath colour: light grey (PVC, thickness 1.5 ± 0.3 mm)

Mechanical Data: Plug
Contact type: multiple 8‑point contact
Max. temperature: 110 °C
Flanges: demountable
Sleeve length (short): 34 mm
Small plug diameter: 40 mm
Solderless connection for EMC grounding

Cable specifications (summary)

• Types: 75/90 kV, straight or elbow connectors
• Example references: 75 kV CA1–CA11; 75/90 kV Straight‑CA11
• Conductor nominal cross section: ~1.8 mm² (tinned copper)
• High-voltage insulation colour: white (elastomer)
• Sheath: grey PVC, thickness 1.5 ± 0.3 mm; typical diameters 18.5 ± 0.5 mm or 14.5 ± 0.5 mm depending on type

Usage / Usage scenario
Cable sheath must be smooth and uniform with no joints, bubbles or bumps. Weave shield density ≥ 90%. Minimum insulation and sheath thickness ≥ 85% of nominal. Insulation between core and insulated wire and between core and ground withstands AC 1.5 kV for 10 minutes without breakdown. Insulation between core and shield withstands DC 90 kV for 15 minutes without breakdown. Plug body withstands repeated drop tests (≥ 1000 falls) without damage. DC resistance of conductor and ground cable ≤ 11.4 ± 5% Ω/m. Core insulation resistance ≥ 1000 MΩ·km. Cable and components comply with RoHS 3.0 and REACH requirements.

Packaging & Delivery
Packing: waterproof carton. Packing size: 51 cm × 50 cm × 14 cm. Gross weight: 12 kg; Net weight: 10 kg. Product images available on the product page.

Lead Time

• 1–10 pcs: est. 3 days
• 11–20 pcs: est. 7 days
• 21–200 pcs: est. 15 days
• >200 pcs: to be negotiated

Technical characteristics / specifications

• Rated voltage: 75 kV DC
• High-voltage insulation (test): 90 kV DC
• Low-voltage insulation (test): 500 Vac
• Shield resistance: 0.010 Ohm/m
• Shield braid coverage: >95%
• Cable capacitance: < 120 pF/m
• Outer diameter: 16.5 mm ± 0.5 mm
• Bending radius: > 150 mm
• Low-voltage conductor: 2 × 1.5 mm²; common conductor: 2 × 0.75 mm²
• Conductor resistance: 0.013 Ohm/m
• Sheath: light grey PVC, thickness 1.5 ± 0.3 mm
• Plug: 8‑point contact, demountable flanges, max temp. 110 °C
• Standard length: 3 m (custom lengths available)
