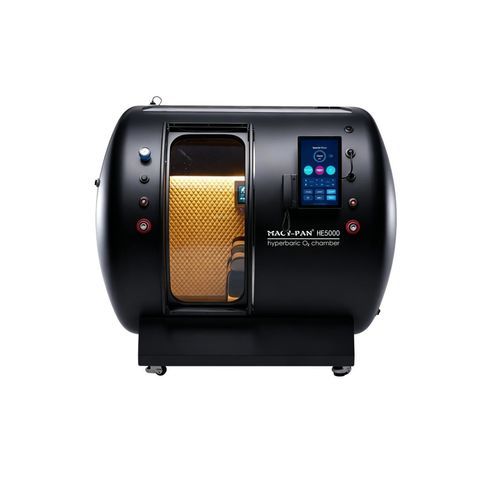

Oxygen therapy hyperbaric cabin HE5000 series

multiplace

Overview
The HE5000 series multiplace hyperbaric oxygen chamber is a rigid stainless steel chamber designed for clinical and wellness facilities to deliver supervised hyperbaric oxygen therapy (HBOT) to multiple users. Available in configurable models for single to multiplace use (HE5000Mini / HE5000 / HE5000Plus).

Short description
Rigid multiplace chamber with round stainless steel shell, high-pressure resistant window structure, integrated control unit and oxygen supply; model-dependent operating pressure up to 2.0 ATA.

Key features

• Stainless steel round shell manufactured to resist internal boost pressure; geometry improves balance and structural stability.
• Round design reduces deformation and operating noise compared with square cabins.
• High-pressure resistant polycarbonate window structure for improved safety and visibility.
• Operating pressure configurable by model: HE5000Mini / HE5000 / HE5000Plus — up to 1.5/2.0 ATA (model-dependent).
• Oxygen delivery under pressure via hood or mask, concentrator supply (two units) with up to 93% O2 and adjustable flow.
• Emergency rapid depressurization valve and internal manometer for user monitoring.
• Multiple seating configurations (1–6 users depending on model) and options for multimedia and patient comfort.
• Integrated control system for pressurization cycles, treatment timing and basic monitoring; designed for clinical workflows.

Additional information
Suitable for clinical centres and wellness facilities requiring supervised HBOT sessions. Installation, commissioning and service options are available to support clinical use and maintenance.

Technical specifications

• Models: HE5000Mini / HE5000 / HE5000Plus (HE5000 series).
• Capacity: HE5000Mini: 1–2 persons; HE5000: 3–5 persons; HE5000Plus: up to 6 persons (model dependent).
• Cabin material: stainless steel shell + polycarbonate high-pressure window.
• Cabin dimensions (L×W×H) mm: HE5000Mini: 2100 × 1100 × 1832; HE5000: 2080 × 1651 × 1832; HE5000Plus: 2580 × 1651 × 1832.
• Door size (all models): 500 × 1160 mm.
• Weight: HE5000 approx. 420 kg; other models vary by configuration.
• Control unit size: 1720 × 350 × 650 mm; weight: 95 kg.
• Airflow (system): 140 L/min.
• Voltage: 110/220/240 VAC ±10%.
• Power: 1250 W.
• Oxygen concentrators: 2 units (size approx. 47 × 46 × 69 cm); concentrator flow up to 20 L/min adjustable.
• Applications: clinical and wellness HBOT sessions for supervised multiplace treatments.
