Oxygen therapy hyperbaric cabin HE5000Fort

on castersmultiplace

Product overview

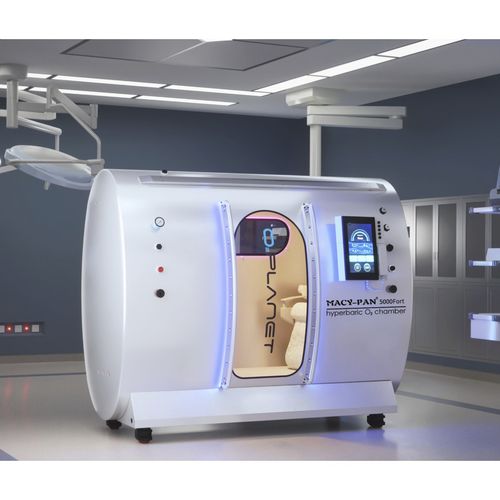

The HE5000Fort multiplace hyperbaric oxygen chamber by Macy-Pan is a clinical-grade pressurized cabin engineered for therapeutic HBOT at 2.0 ATA. Designed for clinics, wellness centers and private practice spaces, it accommodates 1–2 occupants and combines clinical performance with configurable interiors.

Clinical performance
The chamber delivers standardized 2.0 ATA therapeutic sessions and supports continuous oxygen enrichment (integrated concentrator, 90–97% O2). Suitable for recovery, wound care adjuncts and medically supervised wellness protocols. Operational noise externally approx. 50 dB; internal noise minimal.

Construction & safety

• Unibody stainless steel cabin engineered for structural integrity and durability.
• Dual pressure relief valves (inside & outside) for controlled manual depressurization.
• Automatic pressure maintenance valve to preserve preset therapy pressure and prevent anomalies.
• CO2 removal system to avoid accumulation and maintain safe gas composition.
• Smart door sensor prevents pressurization unless door is fully closed.
• Emergency pressure relief and audible over-pressure alarm inside the chamber.
• Power-failure alarm to notify staff in case of unexpected shutdown.

Interior features

• Modular seating: one- or two-seat layouts with aviation-style electric seats (multi-angle, near-flat recline), powered adjustment, integrated massage, ventilation and heating.
• Integrated AV system: HD internet TV, Wi‑Fi connectivity and high-fidelity sound for patient comfort and therapy compliance.
• Multi-zone smart lighting and ambient scenes to support relaxation and clinical procedures.
• Negative-ion air purifier and internal humidification management to improve cabin air quality.
• Medical-grade, easy-to-clean upholstery and optional custom exterior finishes for clinic branding.

Optional configurations

• Starry-sky fiber ceiling
• BIBS (Built-In Breathing System) connections
• Premium/custom painting and graphics
• OEM & ODM layout and equipment customization

Certifications & compliance
Manufactured to comply with international regulatory standards. Typical certifications shown: CE, ISO 9001, ISO 13485, PED, NFPA, ASME, ROHS, SGS, UL (per product documentation).

Technical specifications

• Model: HE5000Fort — Macy-Pan
• Therapeutic pressure: 2.0 ATA (product rated 1.5–2.0 ATA)
• Chamber cabin dimensions (L×W×H): 2200 × 1000 × 1800 mm ±10 mm
• Door size (L×H): 580 × 1150 mm ±10 mm
• Net weight (chamber): 380 kg
• Capacity: 1–2 persons
• Material: Stainless steel + Polycarbonate
• Integrated oxygen concentrator: 90–97% O2 purity
• Movable wheels on chamber and accessory machines
• Noise level: internal virtually silent; external approx. 50 dB
• Warranty: 1 year parts; extended warranty available
• Estimated shipping lead time: ~1 week by air or ~1 month by sea
