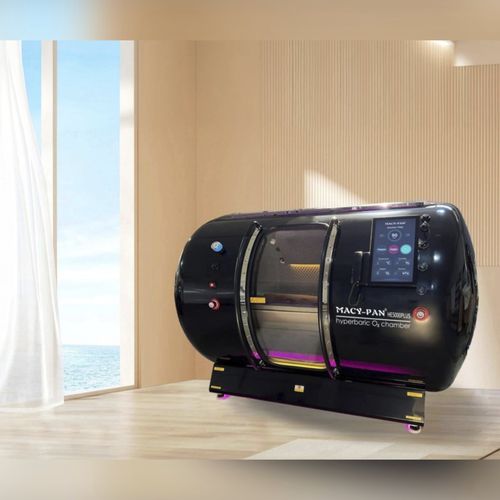

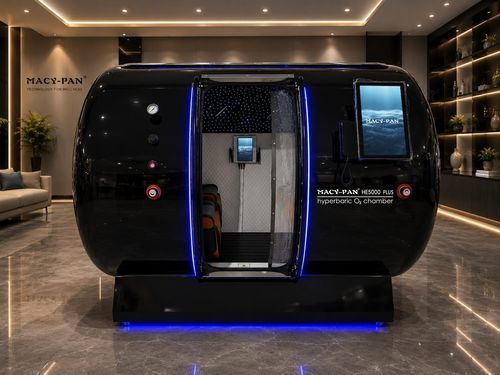

Oxygen therapy hyperbaric cabin HE5000plus

on castersmultiplace

Product overview
MACYPAN HE5000plus is a multiplace hyperbaric chamber engineered for professional hyperbaric oxygen therapy (HBOT) in commercial and wellness facilities. The chamber supports 1–5 occupants with configurable interior layouts and a working pressure range suitable for therapeutic HBOT sessions. Integrated systems provide environmental control, safety monitoring and patient communication to support shared therapy workflows.

Key features

• Spacious cabin: 2500 × 1650 × 1750 mm — configurable for 1–5 seats.
• Working pressure: adjustable from 1.0 to 2.0 ATA (professional treatment range).
• Modular interior: bed-to-bench conversion and multiple seating layouts (3-seat, 4-seat, 5-seat).
• Large linear sliding doors for improved access and reduced claustrophobia.
• Upgraded HVAC with adjustable airflow and direction to control temperature and humidity.
• Entertainment options: provision for TV and Bluetooth stereo installation.
• Two-way interphone system for occupant–operator communication.
• Automatic pressure control with digital display of pressure, oxygen purity, humidity and temperature.
• CO2 removal system to prevent CO2 accumulation.
• Power-failure safety system with automatic pressure release.
• Door-close sensor lock to confirm secure closure.
• Programmable timer for session duration.
• Support for up to 5 additional oxygen headsets.

Configurations

• Bed-to-bench convertible layout.
• One- or two-car-seat style layout.
• Lounge chair with bench layout.
• Two seats paired with a bench layout.

Included accessories

• Chamber cabin
• All-in-one life support unit
• Oxygen concentrator ×2 (masks included)

Certifications / Compliance Standards
CE, ISO9001, ISO13485

Technical specifications

• Model: MACYPAN HE5000plus (Multiplace hyperbaric oxygen chamber)
• Cabin dimensions (L × W × H): 2500 × 1650 × 1750 mm
• Door size (L × H): 500 × 1160 mm
• Chamber net weight: 500 kg
• Pressure range: 1.2–2.0 ATA (100 KPA); working pressure adjustable 1.0–2.0 ATA
• Capacity: 1–5 people
• Material: stainless steel + polycarbonate
• Movable wheels: yes
• All-in-one unit — Dimensions: 76 × 45 × 65 cm; Net weight: 80 kg; Air filter: dual; Voltage: 110/220 VAC ±10%; Air flow: 72 L/min; Oxygen flow: 10 L/min
• Oxygen concentrator (×2) — Dimensions: 47 × 46 × 69 cm; Net weight: 28 kg; Oxygen flow: 10 L/min; Oxygen concentration: 95%; Power: 480 W
• Product accessories summary: chamber cabin; all-in-one unit; 2 × oxygen concentrators
• Intended use classification: marketed as a hyperbaric wellness/health device (not a medical device). Designed for general wellness and non-medical applications; not intended to diagnose, treat, cure or prevent disease.
