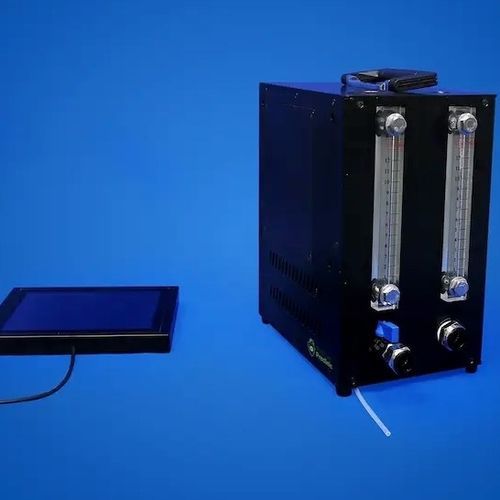

Hemodynamic simulation pump PLPTXG003

for medical simulationelectricpulsatile

Overview
The PLPTXG003 large-flow pulsation pump is a compact pulsatile flow source designed for human vascular simulation and medical training systems. It comprises a pulsation pump system, a control unit and a touchscreen output display. The device provides adjustable pulsation frequency, flow and pressure to reproduce physiologically relevant hemodynamic conditions for endovascular and full-body vascular simulators.

Software & Training Support
The pump integrates with simulation platforms and offers a clear touchscreen interface for real-time status. Software features include quick setup of frequency and flow points, dual-channel sensor acquisition, differential pressure curve analysis and raw data export (TXT) for traceability and post-training analysis. These capabilities support instructor feedback and data-driven training workflows.

Representative product types and modules

• Bronchoscopy Training Model
• Endobronchial Therapy Training Model
• Respiratory Endoscope Training Model
• EBUS-TBNA Training Model
• Pediatric Bronchoscope Training Model
• Tracheotomy Training Model / Module
• Neurovascular Operation Training Model (Type A / B / C)
• Coronary Artery Simulation Model (A / B / C)
• Lower Extremity Artery Simulation Model
• Full-body Vascular Simulation Models / Modular whole-body vascular model
• Laparoscopic Surgery Skill Training Simulator
• Hysteroscopy & Gynecology Training Models
• Colonoscopy and Upper Gastrointestinal Training Models
• Prostate Endoscopy / Prostate Ultrasound Training Models
• ERCP and ESD Training Models
• ECMO Training System
• PICC Training Model
• Ultrasound Cardiac Training Model
• AI Bronchoscopy Virtual Simulator and IPSIM Virtual/Real Bronchoscopy Simulator
• Silicone lesion modules (ordinary, electroresection gel, cryoablation gel)
• Vascular intervention supporting equipment and accessories

Available related pumps (examples shown on the page)

• Large flow pulsation pump
• Pulsating pump - Type A
• Pulsating pump - Type C
• High flow DC pump

Characteristics / Technical specifications

• Model: PLPTXG003
• Components: pulsation pump system, control system, output display (touchscreen), pressure sensor interface
• Power supply: 90–240 VAC, 50–60 Hz
• Pulsation frequency: 20–180 Beat/min
• Maximum cardiac output: 7 L/min @ Max (72 Beat/min)
• Pressure range: 0–250 mmHg; pressure accuracy: ±2 mmHg
• Temperature control accuracy: ±0.5 °C
• Maximum power: 8000 W
• External dimensions: 290 mm × 165 mm × 290 mm; gross weight: 10 kg
• Lead time: 15 days; Origin: Shanghai, China
• Software functions: real-time status display, quick frequency/flow settings, independent input/output flow adjustment, dual-channel sensor data acquisition, differential pressure curve analysis, raw data export (TXT)
• Applications: hemodynamic simulation for endovascular training, full-body vascular models and other simulation setups
