Hemodynamic simulation pump PLPTXG007for medical simulationlaboratoryelectric
Add to favorites
Compare this product
Characteristics
- Applications
- hemodynamic simulation, for medical simulation, laboratory
- Operation
- electric
- Technology
- pulsatile
- Fluid type
- for liquids
- Configuration
- compact, mobile
- Other characteristics
- adjustable-flow
- Flow
Max.: 0.6 m³/h
(21.1888 ft³/h)Min.: 0.12 m³/h
(4.23776 ft³/h)
Description
Product overview

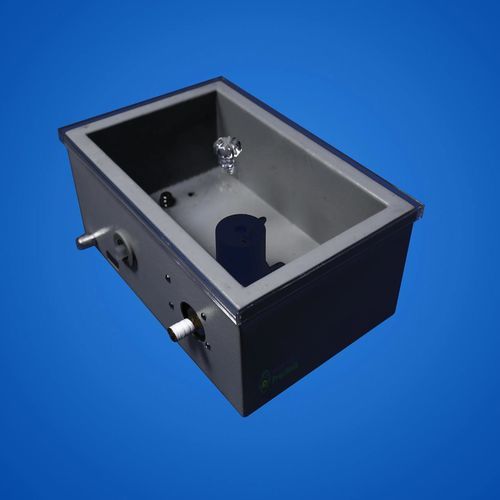

The PLPTXG007 high-flow DC pump is designed to simulate blood circulation in human vessels for cardiovascular R&D and clinical training. The system combines a liquid circulation module (heating, temperature control, continuous circulation) with a control module that adjusts motor amplitude, frequency, flow rate, pressure and temperature.
Features
Product Parameters
Product Size
Other information
FAQ
Q1: What are the core application scenarios for this pump?
A1: Used to simulate human vascular blood circulation in two main scenarios: (1) Medical R&D — in vitro simulation experiments and performance evaluation of implantable cardiovascular devices (delivery, retraction, bending, release); (2) Clinical and preclinical training — as a power source for vascular models to train physicians and R&D personnel and shorten procedural time.
Q2: What are the key performance parameters?
A2: Core parameters: flow range 2–10 L/min; maximum output pressure 200 mmHg; temperature control range 5–40 °C with ±0.5 °C accuracy; power supply AC 220V/3A; maximum power 500 W; equipped with three-level leakage protection.
The PLPTXG007 high-flow DC pump is designed to simulate blood circulation in human vessels for cardiovascular R&D and clinical training. The system combines a liquid circulation module (heating, temperature control, continuous circulation) with a control module that adjusts motor amplitude, frequency, flow rate, pressure and temperature.
Features
- Touchscreen interface for fast parameter setting and real-time adjustments
- Compact integrated design for laboratory bench use and portability
- Controllable output frequency, programmable flow (2–10 L/min) and temperature control
- Quick-connect fluid fittings to simplify installation and reduce spills
- Three-level leakage protection and safety interlocks suitable for laboratory environments
Product Parameters
- Flow range: 2–10 L/min
- Maximum output pressure: 200 mmHg
- Power supply: AC 220V / 3A
- Temperature control range: 5–40 °C
- Temperature control accuracy: ±0.5 °C
- Maximum power: 500 W
Product Size
- Length: 28 cm
- Width: 23 cm
- Height: 16 cm
Other information
- Net weight (NW): 3 kg
- Part number (PN): PLPTXG007
- Lead time: 15 days
- Origin: Shanghai, China
FAQ
Q1: What are the core application scenarios for this pump?
A1: Used to simulate human vascular blood circulation in two main scenarios: (1) Medical R&D — in vitro simulation experiments and performance evaluation of implantable cardiovascular devices (delivery, retraction, bending, release); (2) Clinical and preclinical training — as a power source for vascular models to train physicians and R&D personnel and shorten procedural time.
Q2: What are the key performance parameters?
A2: Core parameters: flow range 2–10 L/min; maximum output pressure 200 mmHg; temperature control range 5–40 °C with ±0.5 °C accuracy; power supply AC 220V/3A; maximum power 500 W; equipped with three-level leakage protection.
