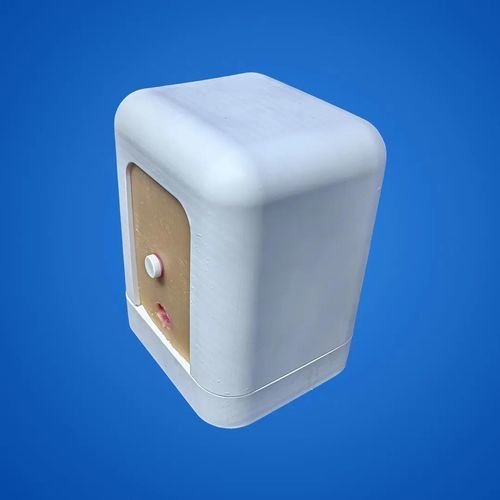

Ultrasound imaging test phantom PLMNCS002Apelvisprostatebladder
Add to favorites
Compare this product
Characteristics
- Type of calibration
- for ultrasound imaging
- Area of the body
- pelvis, prostate, bladder
Description
Product overview
Model PLMNCS002A is a medical simulation device for transrectal ultrasound (TRUS) training of the prostate. The core is made of ultrasound-compatible hydrogel that reproduces human tissue acoustic properties, enabling realistic diagnostic-imaging practice. The model includes two ultrasound-recognizable simulated tumors, a bladder and prostate water-injection system to vary physiological conditions, and preserves the anatomical rectal pathway to support digital rectal examination (DRE) training alongside TRUS.
Key features
Training programs and supported equipment
Design & materials
The model is reproduced from clinical CT/MRI data at 1:1 scale to preserve anatomical accuracy of the male pelvis and prostate pathways. The hydrogel-like material provides realistic ultrasound imaging characteristics. The unit features an internal replaceable prostate ultrasound block and a rigid support shell. Detailed drawings and product diagrams are available on the product page to illustrate anatomical structure and the replaceable prostate block.
Specifications / Technical data
Model PLMNCS002A is a medical simulation device for transrectal ultrasound (TRUS) training of the prostate. The core is made of ultrasound-compatible hydrogel that reproduces human tissue acoustic properties, enabling realistic diagnostic-imaging practice. The model includes two ultrasound-recognizable simulated tumors, a bladder and prostate water-injection system to vary physiological conditions, and preserves the anatomical rectal pathway to support digital rectal examination (DRE) training alongside TRUS.
Key features
- Train recognition and interpretation of prostate ultrasound images
- Practice core TRUS techniques: probe placement, scanning angle and depth control in realistic clinical scenarios
- Simulate ultrasound-guided prostate biopsy using two ultrasound-visible simulated tumors
- Support combined DRE and TRUS workflow training
- Replaceable ultrasound prostate block and rigid support shell for repeated use and simplified maintenance
Training programs and supported equipment
- Training programs: transrectal ultrasound (TRUS) operation, ultrasound‑guided prostate biopsy, prostate palpation (digital rectal examination)
- Supported equipment: mechanically rotating B-mode ultrasound probes, biopsy needles and common interventional instruments
Design & materials
The model is reproduced from clinical CT/MRI data at 1:1 scale to preserve anatomical accuracy of the male pelvis and prostate pathways. The hydrogel-like material provides realistic ultrasound imaging characteristics. The unit features an internal replaceable prostate ultrasound block and a rigid support shell. Detailed drawings and product diagrams are available on the product page to illustrate anatomical structure and the replaceable prostate block.
Specifications / Technical data
- PN: PLMNCS002A
- Main material: ultrasound-compatible hydrogel
- Net weight (NW): 3 kg
- Product size: length 15 cm; width 13 cm; height 19 cm
- Lead time: 15 days
- Origin: Shanghai, China
- Includes: two ultrasound-visible simulated tumors; bladder and prostate water-injection system; replaceable ultrasound prostate block; rigid support shell; preserved rectal pathway for DRE training
