Training simulator

laparoscopylaparoscopic surgeryfor abdominal surgery

Product overview

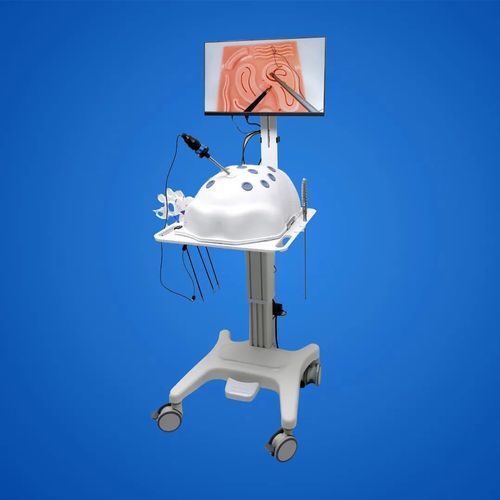

The Laparoscopic Surgery Training Simulator Model LTS-1080 is a medical training system designed to develop and assess basic laparoscopic skills. The system captures intra-box images via an adjustable high-definition camera and displays them on an external LED monitor. The biomimetic training box and interchangeable modules reproduce tissue feel and common laparoscopic tasks for structured skills training.

Specification of Laparoscopic Surgery Training Simulator

• Hardware configuration: 24-inch and above 1080P HD LED display (16:9), biomimetic training box with adjustable LED illumination and Type-C interface, tabletop 500 × 520 mm with 150 mm lifting platform (capacity 25 kg, 220V/50Hz), 1080P 0-degree adjustable-focus camera with USB and HDMI outputs, storage box with various instruments and training modules; includes four simulated laparoscopic instruments (hole-groove grasping forceps, articulating separation forceps, etc.).
• Technical requirements: camera supports 360-degree rotation and manual focusing; training box equipped with drawers and flip covers for module access; split-type trolley with universal wheels; modules use silicone skin and intestinal tubes to simulate human tissue mechanics.

Training modules

• FLS (Fundamentals of Laparoscopic Surgery) bundling module — basic extracorporeal tying and trapping exercises, insertion into the box and intracorporeal tying practice.
• Hand–eye coordination module — includes handling+pulling, threading and bead-clamping submodules to train precision and instrument control.
• FLS handling + pulling module — move triangular silicone pieces between posts using separation and grasping forceps to train speed and coordination.
• Clamp bead module — pick beads of varying color and size, sort and place them on designated pegs to train targeting and hand–eye coordination.
• Wiring module — pass a wire through multiple trap layers and extract it to practice fine instrument handling and dexterity.
• Suturing and knotting module — train correct needle-holder technique, needle entry positioning, and multiple knot types (single knot, square knot, surgical knot); supports continuous and interrupted intracorporeal suturing.
• Titanium clip module — practice applying titanium clips laparoscopically to clamp vessels and ducts in simulated complex environments (simulated vessel length ≥ 10 cm).
• Intestinal anastomosis module — multiple methods for training anastomosis of severed intestinal segments.
• Cutting skill module — practice clinical laparoscopic cutting techniques and tissue handling.

Technical features / specifications

• Display: ≥24-inch 1080P HD LED, 16:9 widescreen.
• Camera: 1080P HD, 0-degree, adjustable focus, USB and HDMI interfaces; supports 360° rotation and manual focusing.
• Training box: biomimetic design with adjustable LED illumination, Type-C interface, drawers and flip covers; includes silicone skin and intestinal tubes to simulate tissue.
• Tabletop and lift: tabletop 500 × 520 mm; 150 mm lifting platform; load capacity 25 kg; electrical: 220V/50Hz.
• Mobility: split-type trolley with universal wheels for repositioning and storage.
• Instruments and storage: storage box with multiple training modules and instruments; four simulated laparoscopic tools included (hole-groove grasping forceps, articulating separation forceps, etc.).
• Training modules: FLS modules (tying, handling, pulling, threading, bead clamping), suturing and knotting, titanium clip simulation, intestinal anastomosis, cutting skills.
