Automatic cell imaging system TOW-MCS-PRO

for cell culturecell imagingbright field

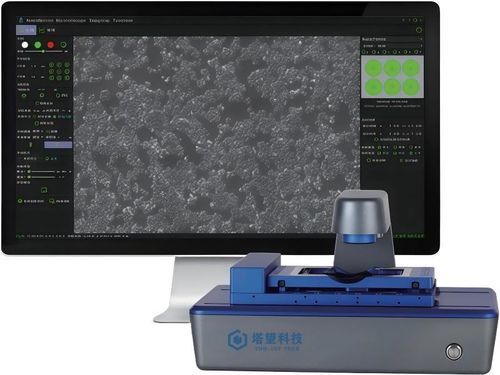

Product Details The Live Cell Imaging System TOW-MCS-PRO is an excellent companion for cell culture. It can be used inside an incubator and supports phase contrast and fluorescence observation of various culture flasks, petri dishes, as well as 6-well to 384-well plates. It enables scanning and stitching of selected regions, allowing for large-field-of-view, long-term observation and recording of multi-well plates. This significantly improves experimental efficiency in application scenarios such as comparative experiments and reduces the risk of experimental failure caused by contamination and other factors. Specifications - Brightfield Observation: Transmitted phase contrast illumination, working distance 55mm - 50,000-hour long lifespan, 625nm low-phototoxicity LED light source - Fluorescence Observation (Fluorescence Wavelengths Customizable): - Blue(B): 472-495nm - Green(G): 543-560nm - Ultraviolet(UV): 393-416nm - Objective Lenses: Select any two from 4×/10×/20× objective lenses; Motorized objective lens switching - Stage: Motorized XY moving platform with a stroke of 115*77mm; Repeat positioning accuracy ≤3μm - Z-axis: Motorized auto-focus mechanism - Camera: High-speed and high-sensitivity camera, 500W 2/3 inch, 40fps - Software: Supports remote control, including light control, camera control, photo taking, video recording, time-lapse photography - Analysis Functions: Cell counting, cell confluency, scratch assay, transfection efficiency, viability analysis - Scanning Functions: - Multi-well imaging: Custom-set XY array for multi-point photography, brightfield and fluorescence multi-channel overlay - Region scanning: Set rectangular regions for full-scan stitching, brightfield and fluorescence multi-channel overlay - Data Transmission/Power Supply: USB data cable + DC power cable - Working Environment: 5-40℃, 20-95%RH - Dimensions: 252mm × 377mm × 208mm Applications - Cell Growth and Confluence Identification - Organoid Culture Monitoring - Scratch Experiment Monitoring - Fluorescence Transfection Technical Features - Works in incubators - Supports phase contrast and fluorescence observation - Scanning and stitching for large field-of-view - Long-term observation and recording - Motorized XY stage and auto-focus - Remote software control and analysis functions
