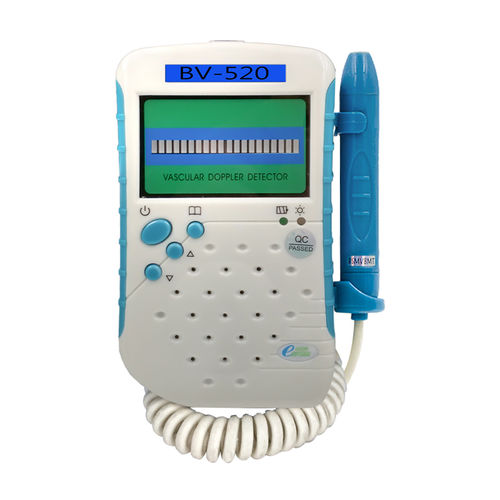

Peripheral doppler BV-520

portableTSPwith pressure calculation

Overview
The BV-520 Vascular Doppler Detector is a handheld ultrasonic Doppler device for detecting arterial and venous blood flow and related parameters in peripheral vessels, toes and fingers. It can also be used to auscultate the temporo-mandibular joint (TMJ) to support clinical assessment.

Features

• Detects arterial and venous blood stream status and average blood flow velocity using Doppler ultrasound (8.0 MHz probe).
• Bar LED indicator provides a visual representation of blood stream status.
• Functional capabilities: detect peak and average blood speed; assess peripheral vessel flow; detect subsection systolic pressure; identify phlebostenosis and vein occlusions; measure systolic pressure of toes and fingers; measure blood speed during recovery; detect pulse rate and display PR simultaneously.
• Can be used to auscultate the temporo-mandibular joint (TMJ) to assist clinical examination.

Package

• Single unit — Dimension: 26 cm x 25 cm x 12 cm; Gross weight: 2 kg.
• 6 pcs/carton — Dimension: 49 cm x 26 cm x 33 cm; Gross weight: 8.5 kg.
• Included accessories: charger, gel, operation manual, approval certification, warranty card.

Certifications

• CE and Free Sale certification.

Technical specifications

• Input voltage: DC 9V 1000 mA.
• Doppler frequency: 100–7000 Hz.
• Display: LED, 20 bit.
• Ultrasonic probe frequency: 8.0 MHz ±10%.
• Battery: 7.4 V / 900 mAh rechargeable lithium.
• Working temperature: 10–40 °C.
• Humidity: ≤80%.
• Atmospheric pressure: 86–106 kPa.
