Peripheral doppler BV-520E

portablewith printerABI

Overview

A blood flow detector is a medical diagnostic device designed to detect and quantify blood flow velocity and waveforms in arteries and veins. It is intended for vascular assessment of cardiac and peripheral vessels and supports tests such as ABI, TBI and segmental pressure studies.

Models

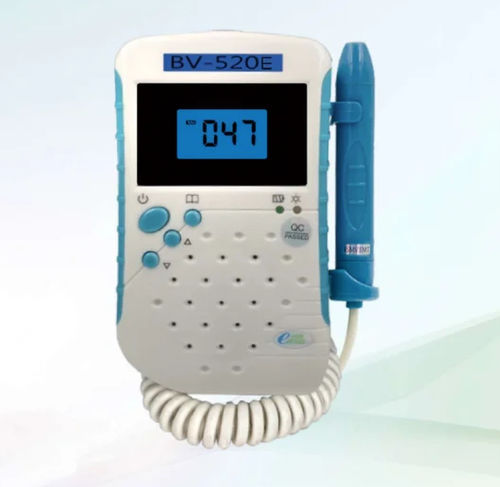

BV-520E

• Blood flow detection using a pen probe at 8.0 MHz (±10%).
• LCD screen displays instantaneous average blood flow velocity in real time.

BV-520T

• Blood flow detection with an 8.0 MHz (±10%) pen probe.
• 2.4-inch TFT display shows instantaneous average velocity and blood flow waveform in real time.

BV-520P

• Blood flow detection with an 8.0 MHz (±10%) pen probe.
• Built-in thermal printer: prints blood flow waveforms and can retrieve saved waveforms from memory for printing.

BV-620VP

• Blood flow detection with an 8.0 MHz (±10%) pen probe.
• 3.2-inch color LCD displays instantaneous average velocity, bidirectional blood flow waveform and pulse rate in real time.

BV-650

• Displays blood flow velocity, pulse rate, bidirectional waveforms, PPG and PVR waveforms.
• Measures ABI/TBI/SEGMENT values, stores data and supports playback.
• Built-in USB port and optional PC software for comprehensive patient data management and analysis via USB connection.

BV-660T+

• 8.0 MHz (±10%) pen probe compatible with bidirectional and unidirectional blood flow probes and PPG probes.
• Displays velocity values, pulse rate, bidirectional waveforms, PPG and PVR waveforms; capable of ABI/TBI/SEGMENT measurements.
• Supports configuration of a laser printer for recording and analysis of test data.

Technical specifications

• Probe frequency: 8.0 MHz (±10%).
• Display: model-dependent (basic LCD for instantaneous average velocity; 2.4-inch TFT for velocity and waveform; 3.2-inch color LCD and larger color displays on advanced models).
• Measurement capabilities: blood flow velocity, pulse rate, bidirectional waveforms, PPG and PVR waveforms; ABI/TBI/SEGMENT measurements on applicable models.
• Data handling: internal memory for waveform storage, built-in thermal printer (BV-520P), USB connectivity and optional PC software (BV-650), laser-printer option (BV-660T+).
• Applications: detection of blood flow in cardiac and peripheral vessels; supports ABI testing and segmental pressure studies for peripheral artery disease assessment.
