Surgical video camera SM-BC4K-S

for open surgerydigital4K

4K Surgical Field Camera for Operating Room Recording and Integration

The SMO Medical SM-BC4K-S is a 4K surgical field camera designed for operating room visualization, surgical video recording, medical teaching, clinical documentation and case review. Equipped with a Sony FCB-CR8530 imaging module, 20× optical zoom, 4K HDMI output and RS485/Sony VISCA control, it provides a stable, detailed view of the surgical field for hospitals and OR integration projects.

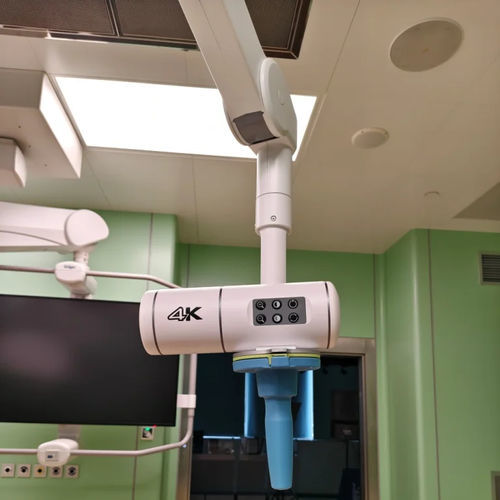

The camera can be installed on a ceiling-mounted suspension arm, surgical light arm or other project-specific mounting system. Its 20× optical zoom allows users to switch from a wide operating room overview to a detailed view of the operative field without moving the camera manually.

Key features

• 4K Ultra HD resolution: 3840 × 2160 at 30 fps
• Sony FCB-CR8530 imaging module
• 20× optical zoom for overview and close-up imaging
• 4.4–88.4 mm optical zoom lens
• Approximate working distance of 80–800 mm
• HDMI video output for an OR monitor or surgical video recorder
• RS485 and Sony VISCA control for system integration
• Image settings optimized for shadowless surgical lights and bright operating room environments
• Fixed or semi-permanent operating room installation
• Customizable mounting interface, cable length and counterweight

Stable surgical field visualization

Compared with handheld cameras, a fixed surgical field camera provides a more consistent external view during long procedures. It can serve as a dedicated video source for operating room displays, 4K recording systems, surgical teaching platforms and clinical documentation workflows.

The optical zoom enables the surgical team to observe both the overall operating area and finer procedural details. The camera can be controlled locally or integrated into a project-specific control system through RS485/Sony VISCA commands.

Typical applications

• Operating room video recording
• Open surgery visualization
• Surgical teaching and live demonstration
• Clinical documentation and case review
• Orthopedic surgery
• Cardiothoracic surgery
• General surgery
• Neurosurgery
• Hospital operating room integration
• Medical video and recording systems

Installation and system integration

The standard configuration supports an Ondal 2000 mounting interface. Alternative interfaces, counterweight requirements, cable lengths and control methods can be adapted according to the surgical light arm, ceiling suspension system or operating room project.

The camera can connect to an external 4K display or medical video recorder through HDMI. Final installation details should be confirmed according to the mounting structure, display system, recording equipment and cable routing requirements.

Technical specifications

• Model: SM-BC4K-S
• Resolution: 3840 × 2160 at 30 fps
• Imaging module: Sony FCB-CR8530
• Optical zoom: 20×
• Focal length: 4.4–88.4 mm
• Video output: HDMI
• Control: RS485/Sony VISCA
• Power supply: DC 12 V/3 A
• Weight: approximately 2.9 kg
• Standard interface: Ondal 2000
