Medical camera SM-SC4K-H

surgical fielddigitalHD

4K Surgical field Camera

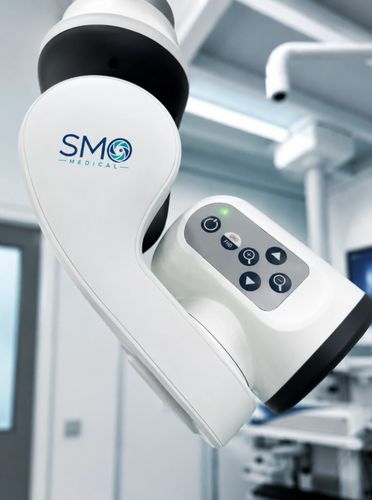

SM-SC4K-H · Motorized surgical field camera
surgical camera for open surgery

Product overview
Recover the surgical view remotely — even when staff, the surgeon or equipment obstruct the camera — without reaching into the sterile field. The SM-SC4K-H is a motorized surgical field camera for Hybrid ORs and DSA rooms, offering remote positioning from more than 5 m and touch-free operation to minimise sterile-field contact.

Key advantages

• Touch-free adjustment — Reduce avoidable contact around the sterile field.
• View recovery after obstruction — Move around heads, shoulders and suspended equipment to restore the view without interrupting the procedure.
• Controlled, repeatable movement — Make small directional corrections from a safe operating position.
• Remote operation for complex rooms — Supports hybrid/interventional rooms with integrated ceiling systems and imaging equipment.

Four motorized axes

• PAN
• TILT
• ROLL
• ORBIT

Imaging

• Sensor: Sony Exmor R (Sony FCB-CR8530 · 1/2.5-type Exmor R CMOS)
• Resolution: 4K UHD — 3840 × 2160 at 30 fps
• Zoom: 20× optical; 12× digital
• Noise reduction: 2D / 3D DNR
• Exposure modes: Surgical-light and Standard

Integration & control

• Video output: HDMI-A; optional 20 m 4K optical HDMI cable supported
• Control: 2.4 GHz handheld remote; RS-485 / Sony VISCA integration-ready commands
• Mounting: Ceiling-arm adapters with options for Ondal, Dräger and project-specific mechanical interfaces
• Power: 24 VDC ·

Applications
Designed for Hybrid ORs, DSA rooms and surgical suites where multiple teams, imaging equipment and suspended systems require remote vision and minimized sterile-field interaction.

Technical specifications

• Model: SM-SC4K-H
• Image sensor: Sony FCB-CR8530 · 1/2.5-type Exmor R CMOS
• Output resolution: 3840 × 2160 at 30 fps
• Zoom: 20× optical · 12× digital
• Focal length: 4.4–88.4 mm
• Video output: HDMI-A · optional 20 m 4K optical HDMI
• Control: 2.4 GHz remote · RS-485 / Sony VISCA
• Power: DC 24 V ·
• Dimensions / weight: Approx. 271 × 223 × 134 mm · 3.6 kg
