Open surgery video camera

for surgical lightsdigital3840 x 2160

Overview

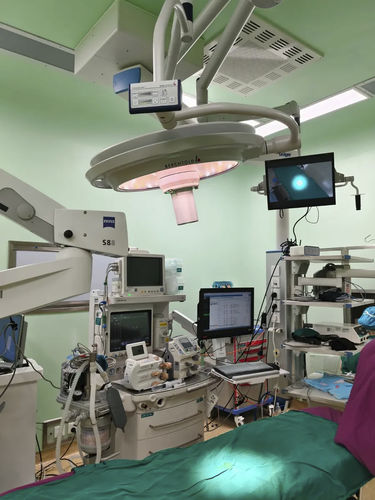

Installed at the center of a compatible surgical light, the wireless center-mounted camera provides a direct overhead view for live display, recording, teaching and operating-room integration. The camera housing and mechanical interface are matched to each light platform and vary by brand, model, generation and center-handle design.

System components

• Center-mounted camera (model-specific housing and adapter)
• Reusable aluminum sterilization cover
• Wireless video receiver
• Wireless remote control

Key benefits

• Aligned field of view — camera follows surgical-light positioning to maintain a direct overhead perspective of the illuminated working area
• Cleaner OR layout — avoids adding a separate ceiling camera arm when the light platform is suitable
• Wireless video path — reduces the need to route a moving video cable through the light suspension
• Workflow-ready — receiver connects to a display, recorder or compatible OR integration system for display and recording

Compatibility and adaptation
Most mainstream surgical-light platforms are supported but the center-mounted camera is not mechanically universal. Compatibility is confirmed by exact light brand, model and generation, and the matched camera structure is selected accordingly.

Examples of adapted surgical-light brands

• KLS Martin
• Berchtold
• SIMEON
• Maquet

Model options (video priority)

• 1080p Wireless — 1920 × 1080 @ 60 fps. Best for smooth live video; typical workflow: display / record / teach; transmission via wireless receiver; model-specific fit.
• 4K Wireless — 3840 × 2160 @ 30 fps. Best for maximum visible detail; typical workflow: 4K display / record / teach; transmission via wireless receiver; model-specific fit.

Model confirmation workflow

• Identify the exact light (brand, model, generation, installation country)
• Provide reference photos of the light head and center-handle area
• Confirm whether an existing adaptation applies or engineering design is required
• Finalize configuration: choose 1080p60 or 4K30, receiver connection, quantity and project documents

Characteristics / Technical specifications

• Video options: 1080p60 (1920×1080 @ 60 fps) or 4K30 (3840×2160 @ 30 fps)
• Wireless video transmission to a dedicated receiver
• Matched mechanical structure per light brand/model/generation; not a universal mount
• System contents: center-mounted camera, reusable aluminum sterilization cover, wireless receiver, wireless remote control
• Typical workflows: live display, recording, teaching, OR integration
• Compatible platform examples: KLS Martin, Berchtold, SIMEON, Maquet (compatibility verified per exact model)
• Benefits: aligned overhead field of view, avoids extra ceiling camera arm, cleaner OR layout, reduced cable routing
• OEM/ODM support: camera-module integration, mechanical design and production support for light manufacturers
