Key cabinet WAP-A01

securitywarmingfor defibrillator

Product Overview

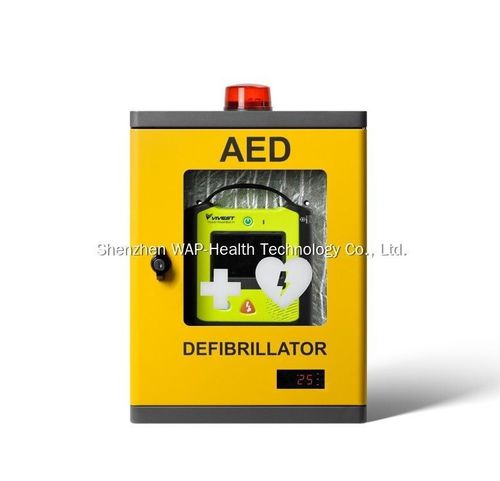

This outdoor AED aluminum cabinet (model WAP-A01) features a square glass design for full frontal visibility and modern appearance. The cabinet protects AED units from weather while enabling clear visual inspection. An integrated intelligent 100W electric heater activates automatically in low temperatures to prevent cold-related device failures. With an IP55 rating, the enclosure resists dust and water for reliable outdoor deployment in public and semi-public locations.

Product Features

• Material: Aluminum, thickness 1.5MM.
• Finish: Two-tone color blocking (Cool Gray 10C + Yellow); custom colors available.
• Door handle: knob with key (model #MS748); magnetic/recessed handle removed.
• Size: H45 x W35 x D18.5 CM (450 x 350 x 185 MM). Customized sizes available.
• Back mounting: three regular holes for secure wall installation; supplied with mounting screws and waterproof washers.
• Front panel: PC beveled glass with anti-UV treatment; square glass design provides 360° visibility.
• Internal aluminum holder included for AED mounting.
• AED marking printed on both sides for visibility.
• Option: with or without ventilation device.
• Protection: Designed for outdoor use, IP55 dust and water resistance.
• Heating: Built-in intelligent 100W electric heater for cold climates.

About this item

• Secure storage: rigid aluminum body with alarm and strobe that activate when the door opens. Alarm level: 85–120 dBA; low-battery chirp included.
• Durability: corrosion-resistant aluminum construction for long service life and easy maintenance.
• Mounting: wall-mounted cabinet with three back holes; includes hardware for installation. Dimensions: 450 x 350 x 185 MM.
• Protection in cold weather: integrated 100W heater ensures AED remains operational in low temperatures.
• Applications: suitable for hospitals, shopping centers, schools, communities, transport hubs, emergency vehicles and other public areas.

Warranty
All WAP AED cabinets include a 2-year warranty.

Technical specifications

• Brand: WAP
• Model: WAP-A01
• Function: AED storage
• Material: Aluminum (1.5MM)
• Front panel: PC beveled glass, anti-UV
• Protection rating: IP55 (dust and water resistant)
• Heater: Built-in intelligent 100W electric heater (automatic activation in low temperatures)
• Size: H45 x W35 x D18.5 CM (450 x 350 x 185 MM); custom sizes available
• Color: Two-tone (Cool Gray 10C + Yellow); custom colors available
• Mounting: Wall mount with 3 back holes; mounting screws and waterproof washers supplied
• Door handle: Knob with key (#MS748)
• Options: With or without ventilation device
