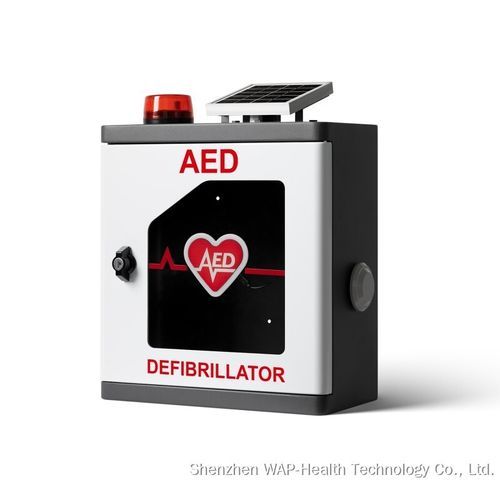

Security cabinet WAP-A01

keyfor defibrillatorfirst aid

Product Overview
This outdoor aluminum alloy AED cabinet (Model: WAP-A01) is an emergency equipment storage solution combining secure protection and integrated lighting. Constructed from 1.5 mm aluminum alloy, it provides corrosion and impact resistance for reliable protection of AED units in various weather conditions. The built-in solar LED system offers automatic dusk-to-dawn illumination without external power, ensuring the device location is visible at night. With IP55 protection, the enclosure is dustproof and water-resistant for extended service life. The integrated design simplifies installation and maintenance, making it suitable for public spaces, communities, schools and commercial sites.

Product Features

• Material: Aluminum, 1.5 mm thickness
• Two-tone color scheme (Cool Gray 10C + White); custom colors available
• Door handle: knob with key (model MS748); no magnetic or recessed handle required
• Size: H38×W35×D18.5 cm (380×350×185 mm)
• Back mounting: standard mounting holes with screws and waterproof washers (replaced hoist holes)
• Front glazing: PC beveled glass with UV protection
• Integrated customizable lighting powered by solar energy (automatic dusk-to-dawn)
• Internal aluminum holder included
• AED marking printed on sides for quick identification
• Optional ventilation device available
• Designed for outdoor use with IP55 waterproof rating

About this item

• Secure storage: aluminum body with alarm and strobe to alert when door is opened; alarm level 85–120 dBA when opened, with low-battery chirp
• Durable and low-maintenance: corrosion-resistant aluminum construction
• Wall-mounted: three rear mounting holes for secure installation; compact footprint (380×350×185 mm)
• Protection: prevents theft, damage and weather exposure of defibrillators
• Applications: suitable for communities, workplaces, hospitals, emergency vehicles, schools and public areas

Warranty
All WAP AED cabinets include a 2-year warranty.

Technical specifications

• Brand: WAP
• Model: WAP-A01
• Material: Aluminum (1.5 mm thickness)
• Color: Two-tone (Cool Gray + White); custom colors available
• Size: H38 × W35 × D18.5 cm (380 × 350 × 185 mm); custom sizes available
• Function: AED storage cabinet
• IP Rating: IP55 (dustproof and water-resistant for outdoor use)
• Front glazing: PC beveled glass, UV protected
• Door handle: knob with key (MS748)
• Back mounting: standard mounting holes with screws and waterproof washers
• Lighting: integrated solar-powered LED, automatic dusk-to-dawn control
• Internal accessories: aluminum holder included; AED marking on sides
• Options: ventilation device available (optional)
• Alarm: alarm and strobe included; 85–120 dBA when opened; low-battery chirp
• Warranty: 2 years
