- SICHUAN ZHONGCE INSTRUMENT TECHNOLOGY CO.,LTD
Infant incubator tester ZCE808 humiditytemperatureair flow
Add to favorites
Compare this product
Characteristics
- Tested parameter
- temperature, calibration, air flow, humidity, signal, movement
- Applications
- for infant incubators, for radiant warmer
- Operating mode
- automatic, manual
- Configuration
- portable, compact
- Patient type
- pediatric
- Other characteristics
- digital, with touchscreen, USB, waterproof, wireless
Description
Overview
Key features
Application / Functions
Specifications / Technical data

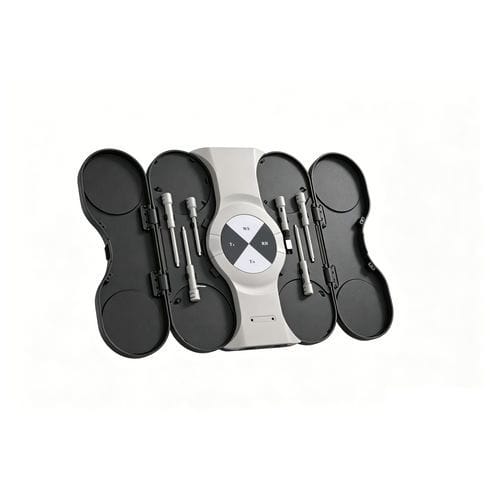

- ZCE808 Series Infant Incubator and Radiant Warmer Tester designed for testing and calibration of infant incubators and radiant warmers; portable collector and intelligent management system for automated acquisition, monitoring and storage of measurement data.
Key features
- The collector host is less than 3 cm in height with a foldable design for compactness and portability; housing made from aerospace-grade materials to avoid adverse impact on incubator airflow or temperature uniformity.
- Independent display and control on the collector; built-in 3300 mAh battery; overall low-power design for extended operation.
- Data transmission via Zigbee technology to support extended operational endurance.
- Integrated tilt sensor in the collector that automatically detects and records the infant crib’s real-time tilt status.
- Intelligent management system enabling automated data acquisition and processing, with freely customizable raw record templates.
- Real-time monitoring of measurement data with corresponding trend curves; both the collector and the management system store measurement data independently to ensure data security.
- Measurement functions can be customized and configured according to specific requirements.
Application / Functions
- Field testing, calibration and quality control of infant incubators and radiant warmers.
- Real-time data capture, monitoring, trend analysis and secure dual-storage of measurement results.
- Customizable measurement sets and raw record templates for different testing protocols.
Specifications / Technical data
- Collector host height: < 3 cm
- Design: Foldable, portable
- Housing material: Aerospace-grade material (minimizes impact on airflow/temperature uniformity)
- Display & control: Independent on collector
- Battery: Built-in 3300 mAh
- Power: Low-power overall design
- Data transmission: Zigbee
- Sensors: Integrated tilt sensor (real-time crib tilt detection and recording)
- Data handling: Intelligent management system with automated acquisition, processing and trend curve display
- Data storage: Independent storage on collector and management system (enhanced data security)
- Configuration: Measurement functions and raw record templates freely customizable
