- SICHUAN ZHONGCE INSTRUMENT TECHNOLOGY CO.,LTD

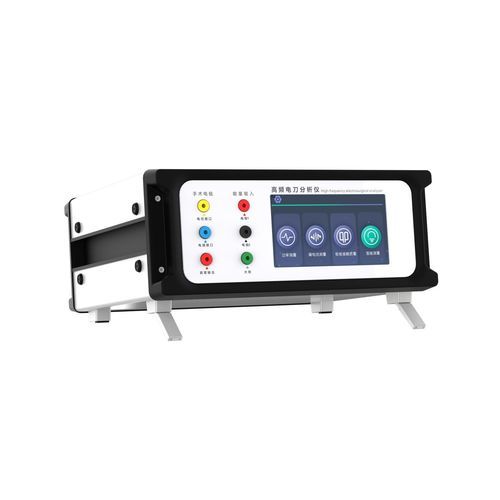

Electrosurgical unit analyzer ZCE802controlcalibrationleakage current
Add to favorites
Compare this product
Characteristics
- Tested parameter
- control, calibration, leakage current
- Applications
- for electrosurgical units
- Operating mode
- automatic
- Configuration
- benchtop
- Other characteristics
- digital, with touchscreen
Description
Overview
Key features
Applications / Category
Technical specifications
- ZCE802 series high-frequency electrosurgical analyzer for leakage current, output power and power-load distribution testing, calibration and quality control of electrosurgical equipment.
Key features
- Leakage current measurement with automatic jumpering to avoid complex external wiring.
- Power measurement values are auto-locked and automatically populated into the interface table to simplify on-site data recording.
- Power and load-distribution measurements presented in tabular and graphical formats for straightforward data review and quick access to maximum power values.
- Intelligent adjustment of load step size during maximum output power testing to streamline procedures.
- Automatic and manual measurement modes available; minimum of three connecting cables required to complete all parameter measurements.
- Over-temperature alarm function to ensure safe operation during testing.
Applications / Category
- Medical electrophysiological metrology, calibration and quality control
- Calibration, testing and quality assurance of high-frequency electrosurgical generators and instruments
Technical specifications
- Product series: ZCE802 series
- Measurement modes: automatic and manual
- Leakage current measurement: automatic jumpering (no complex external wiring required)
- Power measurement output: values auto-locked and auto-populated into interface tables
- Display formats: tabular and graphical presentation of power and load-distribution data
- Maximum output power test: intelligent adjustment of load step size
- Minimum connection requirement: at least three connecting cables for complete parameter measurement
- Safety feature: over-temperature alarm
- Reference standards: JJF1217, WS/T 602 (where applicable)
