Hand-held ultrasound system SIFULTRAS 5.08
for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor cardiovascular ultrasound imaging

Hand-held ultrasound system - SIFULTRAS 5.08 - SIFSOF - for multipurpose ultrasound imaging / for gynecological and obstetric ultrasound imaging / for cardiovascular ultrasound imaging

Add to favorites

Compare this product

Go to the SIFSOF website for more information

Characteristics

Ergonomics

hand-held

Application

for multipurpose ultrasound imaging, for gynecological and obstetric ultrasound imaging, for cardiovascular ultrasound imaging

Imaging modes

B/W, color doppler, spectral doppler, needle guidance

Options

wireless probe

Probe type

microconvex-array

Probe frequency

Min.: 6 MHz

Max.: 8 MHz

Weight

0.2 kg
(0.44 lb)

Length

33.6 cm
(13.2 in)

Height

2.8 cm
(1.1 in)

Depth

12 cm
(4.7 in)

Description

Summary

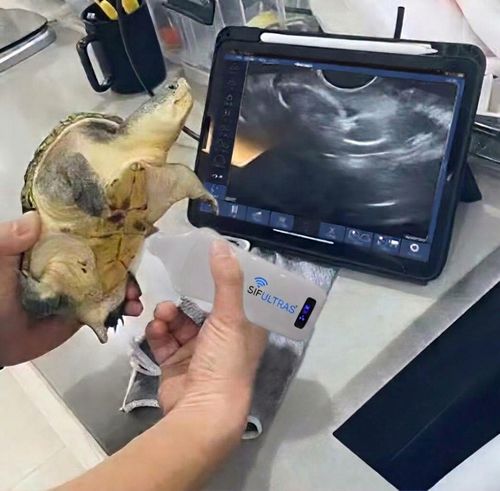

Device: Wireless micro-convex color Doppler ultrasound scanner SIFULTRAS-5.08 (brand: SIFULTRAS)
Probe: micro-convex electronic array R13, dual frequency 6/8 MHz; scan angle 149°; adjustable depth 30–120 mm
Connectivity & power: 5 GHz Wi‑Fi (802.11g / 20 MHz / up to 450 Mbps) compatible with iOS, Android and Windows; battery up to 3 hours; USB continuous power and optional wireless charger

Clinical applications

Veterinary imaging for small animals and exotic species, with particular suitability for chelonians (turtles, tortoises)
Reproductive monitoring: ovarian follicle assessment, egg visualization and counting, pre-ovulatory checks, detection of egg retention (dystocia) and follicular stasis
Cardio-vascular and soft-tissue assessment in small windows due to micro-convex footprint; designed for both clinic and field use

Features / Technical specifications

Model: SIFULTRAS-5.08
Probe type: micro-convex (electronic convex array R13)
Probe frequency: 6 / 8 MHz (dual frequency)
Scan angle: 149°
Imaging depth: adjustable 30 mm to 120 mm
Imaging modes: B, B/M, Color, PW (pulsed wave), PDI (power Doppler)
Measurement tools: length, area, angle; obstetric tools for egg sizing and counting
Puncture assistance: in‑plane and out‑of‑plane guidance
Cineplay: automatic and manual modes; frame capture options (100/200/500/1000)
Frame rate indicated: ~18 fps
Image adjustments: gain, dynamic range, focal zones, depth, harmonics, noise reduction levels 0–4
Dynamic Range options: 40–110
File formats: jpg, png, mp4, DCM
Gain range: 30 dB – 105 dB
Battery life: up to 3 hours; rechargeable via USB; optional wireless charger
Power: USB continuous supply supported
Dimensions & weight: approx. 336 x 35 x 28 mm (other length reported 360 mm); weight ~200 g
Compatible OS: Android, iOS, Windows
Warranty: 12 months

Package contents

SIFULTRAS-5.08 micro-convex color Doppler ultrasound scanner
USB data/charging cable; optional wireless charger (as indicated)
Documentation and 12-month warranty
