Convex-array ultrasound transducer SIFULTRAS 4.33
linear-arrayabdominalvascular

Convex-array ultrasound transducer - SIFULTRAS 4.33 - SIFSOF - linear-array / abdominal / vascular

Convex-array ultrasound transducer - SIFULTRAS 4.33 - SIFSOF - linear-array / abdominal / vascular - image - 2

Add to favorites

Compare this product

Go to the SIFSOF website for more information

Characteristics

Probe type

convex-array, linear-array

Application

abdominal, vascular, small parts, musculoskeletal, cardiac, obstetrical/gynecological

Probe frequency

Max.: 7.5 MHz

Min.: 2.5 MHz

Description

Overview

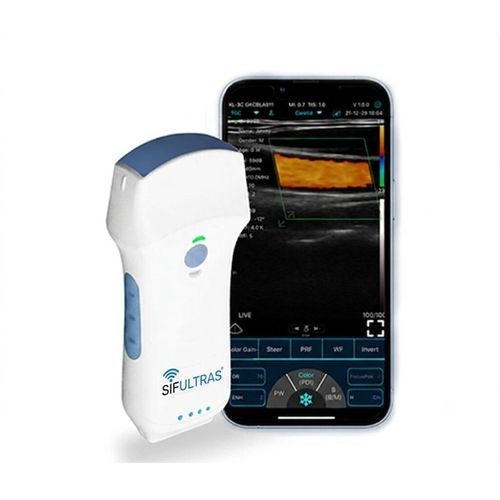

SIFULTRAS-4.33 is a wireless 3-in-1 ultrasound probe combining convex, linear and cardiac modes in a single dual-head probe. Designed for point-of-care use, it integrates AI-assisted screening tools and supports bedside imaging workflows with IP68 ingress protection and cross-platform connectivity.

Main features

3-in-1 probe: Convex, Linear and Cardiac modes in one device.
Imaging hardware: 192 elements / 64 channels; scan widths: linear 125 mm, convex/cardiac 34 mm.
Imaging modes: B, M, B+B, B/M, Color Doppler, PW, PDI/CFM; 256-level greyscale.
Integrated AI: thyroid nodule detection, breast screening assistance, automatic skin thickness measurement.
Thermal management and anti-slip ergonomic coating for prolonged use.
Waterproofing: IP68 for cleaning and clinical environments.

Clinical applications

Abdominal and obstetric imaging (convex mode).
Vascular, musculoskeletal and superficial tissue imaging (linear mode).
Echocardiography and cardiac assessments (cardiac mode).
Point-of-care (POCUS) in emergency, ICU, field and home care.
AI-assisted screening workflows at bedside and remote diagnostics.

Technical specifications

Model: SIFULTRAS-4.33
Brand: SIFULTRAS
Probe type: Wireless dual-head (Convex + Linear + Cardiac)
Elements / Channels: 192 / 64
Frequencies (examples): 3.2/5 MHz, 7.5/0 MHz, 2.5/5 MHz
Depth presets: multiple (e.g., 20–305 mm depending on mode)
Storage options: 100 / 200 / 500 / 1000 frames (optional)
Frame rate: configurable (example listed 24 s/f)

Connectivity & compatibility

Wireless: Wi‑Fi integrated (802.11g / 20MHz / 5G / up to 450 Mbps)
Wired: USB connection
Host devices: Android / iOS / Windows — tablet, smartphone, PC
Software-adjustable parameters: gain, PRF, focus position, depth, 8TGC, annotations, biopsy guide, presets

Battery & power

Dual integrated lithium batteries (2800 mAh total indicated)
Operating time: >4 hours continuous (typical); standby ~72 hours
Charging: wireless charging supported; charging by cable possible during use
Battery replacement: serviceable by qualified technician

Certifications
