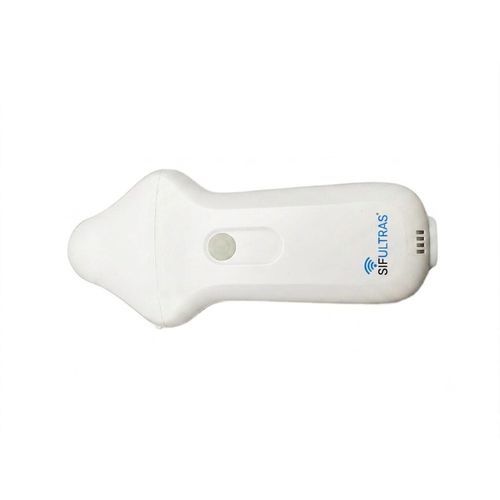

Portable ultrasound system SIFULTRAS-5.05

for ophthalmic ultrasound imagingB/Wcolor doppler

Product Overview

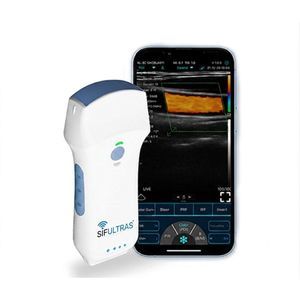

The SIFULTRAS-5.05 is a wireless color Doppler ultrasound scanner with a micro‑convex probe designed for ophthalmic and other small‑region imaging. It streams real‑time images via WiFi to iOS/Android devices and supports standard medical image workflows including DICOM.

Key Features

• Wireless WiFi Connectivity — Live color Doppler streaming to smartphones and tablets without a dedicated console.
• Cross‑Platform Compatibility — Supports iOS and Android (Windows compatibility where applicable).
• Color Doppler Imaging — Visualizes blood flow and vascular anatomy for ophthalmic assessment.
• Micro‑Convex Probe — Optimized for small‑footprint areas such as the eye; available 8/11 MHz frequencies.
• Portable Form Factor — Lightweight probe for point‑of‑care and mobile clinics.
• Intuitive Operation — Streamlined UI for rapid clinical adoption.

Ideal For
Ophthalmologists, optometrists and imaging specialists performing ocular and small‑region vascular assessments where portable color Doppler is required.

Features — Image & Data

• Display modes: B, B/M, Color, PW, PDI
• Measurement modes: Length, Area/Circumference, Angle, Trace, Distance; Heart Rate, Time, Velocity, S/D, Depth
• Image frame rate: 24 fps; Cineplay buffer: 100 / 200 / 500 / 1000 frames
• Image/video save formats: JPG, AVI, MP4 and DICOM; WiFi streaming and saving to mobile devices

Connectivity & Power

• WiFi: 802.11g, 20 MHz, supports 5 GHz, up to 450 Mbps
• Supported OS: iOS, Android (Windows compatibility indicated)
• Battery: built‑in 2800 mAh Li‑ion; runtime ~3 hours continuous, standby >5 hours
• Power consumption: ~4 W (active), ~1.5 W (idle)
• Charging: USB cable and wireless charging supported

Form Factor
Probe dimensions (example): 135 × 61 × 21 mm; weight: ~103 g — designed for easy transport and point‑of‑care use.

Technical Specifications

• Model: SIFULTRAS-5.05
• Probe type: Micro‑convex, electronic array
• Elements: 128
• Frequency (micro‑convex): 8 / 11 MHz
• Scan depth: adjustable, typical steps 30 / 50 / 70 / 80 mm (30–80 mm)
• Probe radius example: R13
• Frame rate: 24 images/s
• Cineplay: 100 / 200 / 500 / 1000 frames
• Image formats: JPG, AVI, MP4, DICOM
• WiFi: 802.11g / 20 MHz / 5G support / up to 450 Mbps
• Battery: 2800 mAh Li‑ion (built‑in)
• Dimensions: 135 × 61 × 21 mm; Weight: ~103 g
• Included: probe, wireless charger, USB charging cable; Warranty: 12 months
