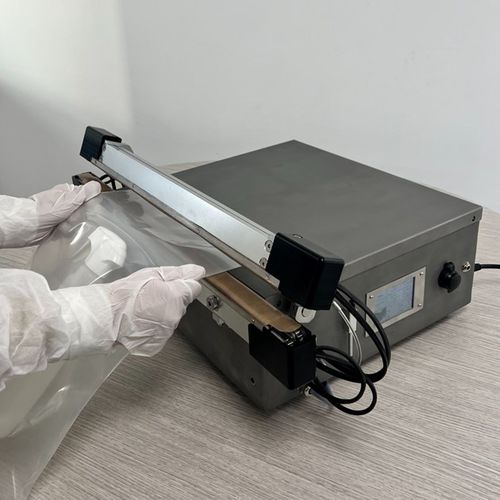

Pulse-controlled sealer SIR 480
medicalfor the pharmaceutical industrylaboratory

Pulse-controlled sealer - SIR 480 - SIMAGEC - medical / for the pharmaceutical industry / laboratory
Pulse-controlled sealer - SIR 480 - SIMAGEC - medical / for the pharmaceutical industry / laboratory
Pulse-controlled sealer - SIR 480 - SIMAGEC - medical / for the pharmaceutical industry / laboratory - image - 2
Pulse-controlled sealer - SIR 480 - SIMAGEC - medical / for the pharmaceutical industry / laboratory - image - 3
Pulse-controlled sealer - SIR 480 - SIMAGEC - medical / for the pharmaceutical industry / laboratory - image - 4
Add to favorites
Compare this product

Characteristics

Applications
medical, for the pharmaceutical industry, laboratory
Operation
semi-automatic
Technology
pulse-controlled
Container type
for blood bag tubes, for medical packaging
Product applications
for implantable devices, for prosthesis, for medical implants, for surgical instruments
Configuration
benchtop
Options
with touchscreen, with temperature control
Seal length

480 mm
(18.9 in)

Seal width

Min.: 2 mm
(0 in)

Max.: 8 mm
(0 in)

Power

1,500 W

Sealing temperature

Min.: 110 °C
(230 °F)

Max.: 200 °C
(392 °F)

Weight

30 kg
(66.1 lb)

Length

600 mm
(24 in)

Width

440 mm
(17 in)

Height

270 mm
(11 in)

Description

The SIR 480, which is certifiable, is the new regulated impulse sealer developed by SIMA-MECA. Designed for peelable or fusion sealing on bags for medical and pharmaceutical packaging in clean rooms. It combines performance and reliability and complies with ISO 11607-2, ISO 13485 and 21 CFR Part 11 ‘FDA’, offering precise control of temperature, time and pressure for your packaging. The SIR 480 is compatible with different types of pouches: - PA/PE - PE/PE - TYVEK coated or uncoated/PET - PA/PE/PEEL It does not require compressed air, simplifying its integration into your production environment. We have specially designed its stainless steel construction for clean rooms. Thanks to its interface (touch screen), our impulse sealer allows simple and intuitive control of the sealing parameters and ensures the safety of your processes with alerts in case of out-of-tolerance values.
