Medical sealer MECA SHT 500
for the pharmaceutical industrysemi-automaticfor medical packaging

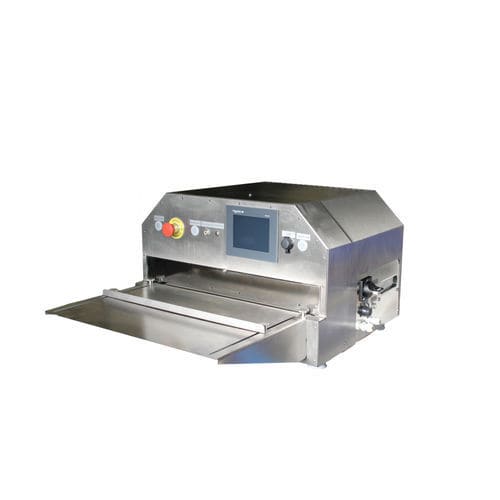

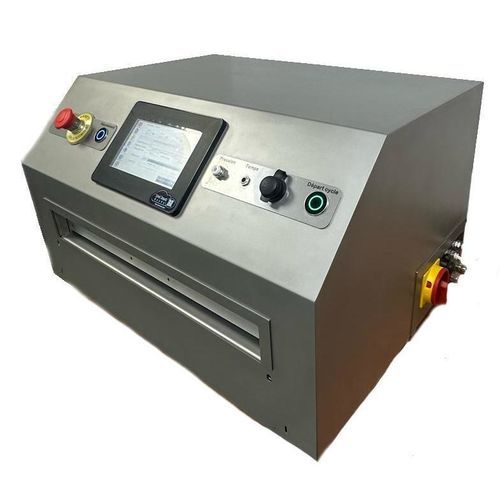

Medical sealer - MECA SHT 500 - SIMAGEC - for the pharmaceutical industry / semi-automatic / for medical packaging
Medical sealer - MECA SHT 500 - SIMAGEC - for the pharmaceutical industry / semi-automatic / for medical packaging
Medical sealer - MECA SHT 500 - SIMAGEC - for the pharmaceutical industry / semi-automatic / for medical packaging - image - 2
Add to favorites
Compare this product
Go to the SIMAGEC website for more information

Characteristics

Applications
medical, for the pharmaceutical industry
Operation
semi-automatic
Container type
for medical packaging
Product applications
for implantable devices, for prosthesis, for medical implants, for surgical instruments
Configuration
benchtop
Options
with touchscreen, pressure regulator, with temperature control
Seal length

290 mm
(11.4 in)

Seal width

Max.: 20 mm
(1 in)

Min.: 2 mm
(0 in)

Power

1,600 W

Sealing temperature

Max.: 200 °C
(392 °F)

Min.: 90 °C
(194 °F)

Weight

80 kg
(176.4 lb)

Length

636 mm
(25 in)

Width

813 mm
(32 in)

Height

392 mm
(15 in)

Description

The SHT500 heat sealer is designed for peelable or fusion sealing on bags. Ergonomic and qualifiable sealer, equipped with a production data recovery system via USB key or computer network. Available with a standard or customised support, equipped with a bag positioning ruler. Bag types: - TYVEK coated or uncoated / PET - PA / PE / PEEL - Aluminium / PE - PE / PE - Adjustable temperature from 90°C to 200°C (accuracy ± 2°C) - Adjustable cycle time from 1 to 15 seconds (accuracy ± 0.15 s) - Pressure from 1 to 7 bar (accuracy ± 0.2 bar)
