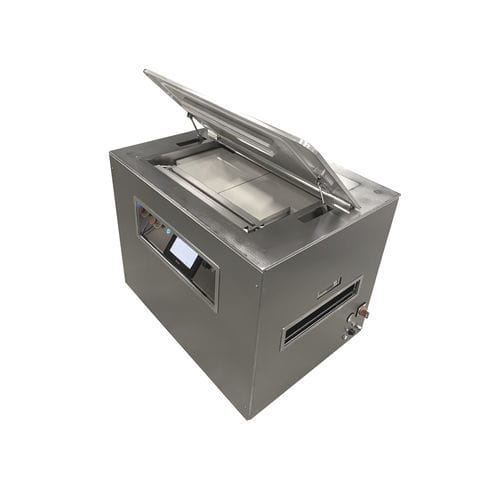

Medical sealer MECA SV 500
for the pharmaceutical industrysemi-automatedpulse-controlled

Medical sealer - MECA SV 500 - SIMAGEC - for the pharmaceutical industry / semi-automated / pulse-controlled

Add to favorites

Compare this product

Characteristics

Applications

medical, for the pharmaceutical industry

Operation

semi-automated

Technology

pulse-controlled

Container type

for medical packaging

Product applications

for implantable devices, for prosthesis, for medical implants, for surgical instruments

Configuration

floor-standing

Seal length

500 mm
(19.7 in)

Seal width

Max.: 10 mm
(0 in)

Min.: 8 mm
(0 in)

Power

2,500 W

Sealing temperature

Max.: 200 °C
(392 °F)

Min.: 90 °C
(194 °F)

Weight

330 kg
(727.5 lb)

Length

1,075 mm
(42 in)

Width

795 mm
(31 in)

Height

965 mm
(38 in)

Description

The SV500 vacuum sealer is designed for peelable or fusion sealing on bags for medical devices. Ergonomic and qualifiable sealer with automatic cycle start when the lid is closed. Production data can be retrieved via USB key or computer network. Bag types: - PA/PE/PEEL - Aluminium/PE - PE/PE Temperature: 90°C to 200°C (± 2.0°C) Cycle time: 1 to 15 seconds (± 0.15 s) Pressure: 1 to 7 bar (± 0.2 bar) Vacuum: 50 to 700 mbar (± 15 mbar)
