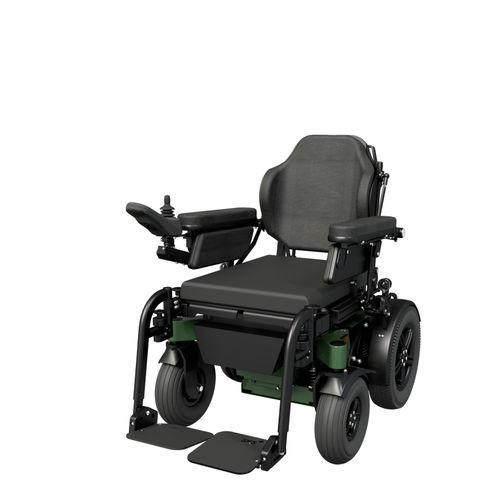

Electric wheelchair Swiss Viva Grand

for disabled peopleoutdoorindoor

Short description
One chair for everything – the Swiss Viva Grand unites outdoor driving capability with compact indoor agility. Modularly adapted to the user and available with a wide range of customization options, it takes users where they need to go. Durable construction and quality components support long service life.

This is what it offers

• Outdoor driving capability and compact manoeuvrability indoors
• Excellent driving characteristics thanks to independent suspension
• Compact footprint even with larger seat dimensions
• Flexible positioning including centre-of-gravity adjustment
• Onboard charger placement for easy access
• Modular design for optimal individual adjustment
• Many options and straightforward custom adaptations
• Driver solution for vehicle transport
• Sustainable companion: build designed for long service life and later adaptations

How it can change your life
OUTDOORS – POWERFUL & ALL-TERRAIN
With powerful motors and independent suspension, the Viva Grand negotiates demanding outdoor terrain. Flexible positioning with dynamic centre-of-gravity adjustment helps maintain stability on slopes and uneven ground.

INDOORS – COMPACT & AGILE
Easy indoor mobility for homes, workplaces and shops. Modern control elements, compact dimensions and low seat height allow access at most tables and in confined spaces.

PERFECTLY ADAPTABLE
Modular design with extensive customization options and a biodynamic positioning package. Key components such as headrest, leg supports and seat angle move in concert with the user for precise fitting.

LONG-LASTING AND SUSTAINABLE
Durable construction and high-quality components ensure longevity; the Grand can be adapted later to changed needs.

Colours
Traffic yellow, Traffic red, Ultramarine blue, Emerald green, Chassis matt black, Chassis matt white

Characteristics / technical specifications

• Maximum speed: 8 / 12 km/h
• Total length with standard leg rests / without leg rests: 98 cm / 73 cm
• Width: 63 cm
• Turning radius with leg rests: 98 cm
• Standard seat width: 38–50 cm
• Standard seat depth: 40–54 cm
• Minimum seat height without seat cushion: 42.5 cm
• Seat angle mechanically adjustable / electrically: n.a. / 0–40/50°
• Back angle mechanically adjustable / electrically: 82–135° / 82–153°
• Electric seat lift: 0–30 cm
• Electrically adjustable leg rests: YES
• Adjustable leg rest bracket: 0–10 cm
• Front wheel diameter: 23/26 cm
• Drive wheel diameter: 35 cm
• Drive motor: 2 x 350 W
• Batteries: 2 x 12 V / 76 Ah (C20)
• Recommended max. load capacity std/HD: 120/180 kg
• Maximum obstacle height: 8 cm
