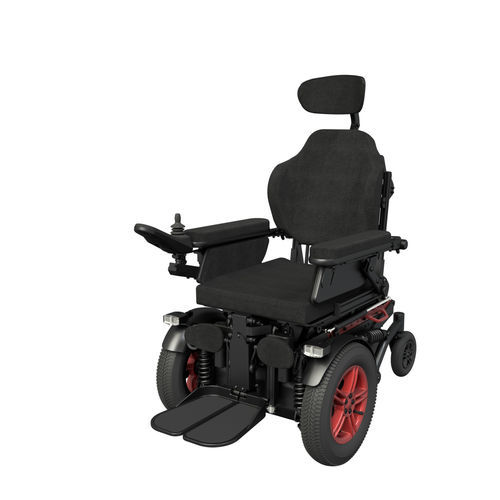

Electric wheelchair Viva Grand F

for disabled peopleoutdoorindoor

Overview
The Swiss Viva Grand F is a front-wheel drive electric wheelchair with a modular special-build design. Front-wheel traction is introduced on the Viva range with this model to improve handling on kerbs, forest tracks and narrow passages while keeping compact indoor dimensions.

Key features

• Modular special-build structure with numerous options
• Optional electric seat lift (0–30 cm)
• Suitable for outdoor driving and rougher surfaces
• Good manoeuvrability indoors due to compact dimensions
• Independent suspension on each wheel
• Competitive seat height and overall width for its class
• Seat width options: possible 35–55 cm
• Remains compact even with larger seat dimensions
• Flexible positioning including centre-of-gravity adjustment
• Backrest with length compensation/adjustment
• On-board charger included
• Modular and adjustable for individual needs
• Can be adapted for driving a private car
• Retrofit-ready construction allowing later adaptations

Modular customisation
The Swiss Viva Grand F is built on a modular concept with a wide range of factory and special-build options (different lift types, chassis variants, cushion and upholstery options) so the chair can be configured to the user’s clinical and daily requirements.

Compactness and seating geometry
Designed to provide a low seat height and narrow overall width while allowing a wide range of seat widths and depths. This facilitates transfers, sitting at tables and passing through doors.

Indoor and outdoor mobility
Dual 400 W drive motors and independent wheel suspension enable use on demanding outdoor terrain while compact footprint and modern controls support indoor mobility and manoeuvring.

Durability and serviceability
Construction allows for component replacement and retrofit options to support long-term use and modifications as clinical needs evolve.

Colours
traffic yellow, traffic red, ultramarine blue, emerald green, chassis matt black

Technical data

• Maximum speed: 8 / 12 km/h
• Total length (with standard leg rests / without leg rests): 110 cm / 96 cm
• Width: 59 cm
• Turning radius (with leg rests): 66 cm
• Standard seat width: 38–50 cm
• Standard seat depth: 40–54 cm
• Minimum seat height under load without seat cushion: 39 cm
• Seat angle mechanically adjustable / electric: n.a. / 0–40/50°
• Back angle mechanically adjustable / electric: 82–135° / 82–153°
• Electric seat lift: 0–30 cm
• Electrically adjustable leg rests: YES
• Backwheel diameter: 17.5 cm
• Drive wheel diameter: 35 cm
• Drive motor: 2 x 400 W
• Batteries: 2 x 12 V / 60Ah (C20)
• Recommended max. load capacity (std / HD): 120 / 180 kg
• Maximum obstacle height: 7 cm
