Electric wheelchair Swiss Viva Plus

for disabled peopleindoorfolding

Intro

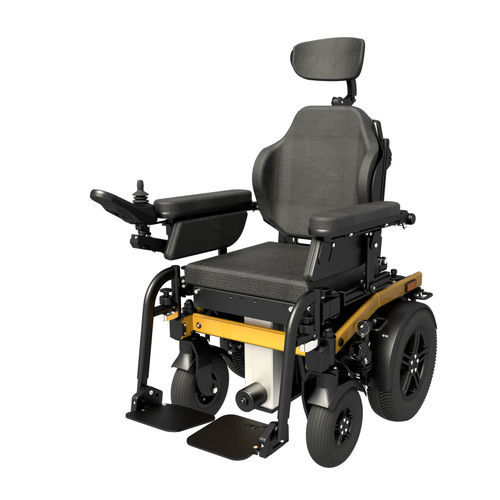

The Swiss Viva Plus is a compact electric wheelchair designed for confined environments where full function must be preserved. It integrates SKS options such as a biodynamic positioning package and an electric seat lift while maintaining a very small footprint for indoor and urban use.

Key features

• Extremely compact design
• High manoeuvrability for narrow spaces
• Infinitely adjustable seating and positioning
• Integrated charger for convenient recharging
• Service-friendly layout
• Steering fork lock (electric actuation available)
• Fold-away anti-tipping device
• Interfaces for back systems and orthopaedic shells
• Hockey version available

Applications and benefits
The Viva Plus is suited to private homes, assisted-living facilities, clinics and urban environments where doorways, lifts and checkouts are restricted. Its dimensions (95 cm length with standard leg rests, 60 cm width, 79 cm turning radius) enable access in tight corridors and retail aisles. Not intended for off-road use; optimised for pavements, cafés and indoor circulation.

Functions
Integrated onboard charger allows topping up during the day. Electric steering fork lock enables swivelling and locking of the steering wheels for transport or manoeuvring. Folding and swivelling elements can reduce overall length for lifts, ramps or narrow openings. Compatible with SKS biodynamic positioning package and multiple accessory options.

Technical data
Maximum speed: 8 / 12 km/h
Total length with standard leg rests / Without leg rests: 95 cm / 66 cm
Width: 60 cm
Turning radius with leg rests: 79 cm
Standard seat width: 36–53 cm
Standard seat depth: 35–50 cm
Minimum seat height without seat cushion: 45 cm
Seat height including SKS standard seat: 50 cm
Seat angle mechanically adjustable / electric: 0–17° / 0–27°
Back angle mechanically adjustable / electric: 90–102° / 90–150°
Electric seat lift: 0–27 cm
Electrically raised leg rests: YES
Adjustable leg rest bracket: n.a.
Front wheel diameter: 20/23/26 cm
Drive wheel diameter: 35 cm
Drive motor: 2 x 350 W
Batteries: 2 x 12 V / 60 Ah (C20)
Load capacity: 100 kg
Maximum obstacle height: 5–6 cm

COLORS
traffic yellow, traffic red, ultramarine blue, emerald green, chassis matt black, chassis matt white

Characteristics / Technical specifications

• Modular construction with extensive special-build options
• Biodynamic positioning package for synchronized headrest, legrest and seat movements
• Integrated charger for on-the-go charging
• Electric seat lift (0–27 cm)
• Electrically adjustable seat and back functions (seat tilt up to 27°, back up to 150° electrically)
• Drive configuration: 2 x 350 W motors
• Battery capacity: 2 x 12 V / 60 Ah (C20)
• Maximum user weight: 100 kg
